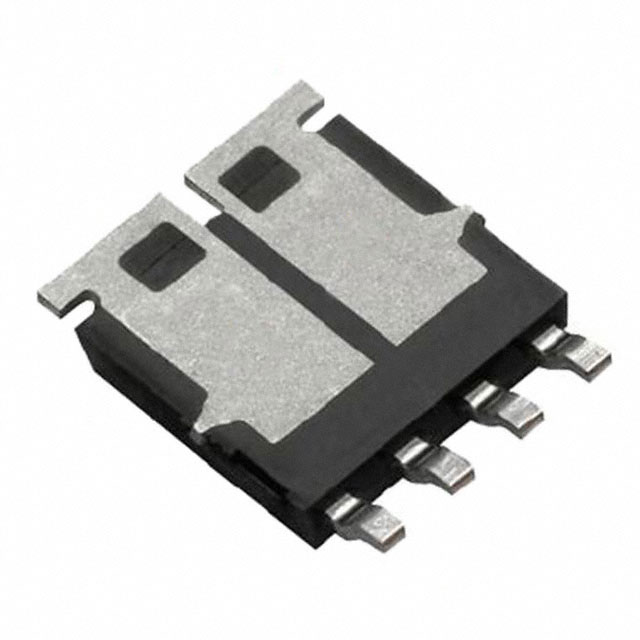

Images are for reference only.
See Product Specifications for product details.
Buy SQJ560EP-T1_GE3 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy SQJ560EP-T1_GE3 with confidence from wisdommobility.com, 1 Year Warranty
SQJ560EP-T1_GE3
| Part No | SQJ560EP-T1_GE3 |
|---|---|
| Manufacturer | Vishay |
| Description | MOSFET DUAL N P CH 60V PPAK SO-8 |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:14078 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $1.1869 | $119 | |||
| 10+ | $1.1632 | $582 | |||
| 100+ | $1.1276 | $1128 | |||
| 1000+ | $1.0919 | $1092 | |||
| 10000+ | $1.0445 | $1045 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 60V |
|---|---|
| Package / Case: | PowerPAK® SO-8 Dual |
| Mounting Type: | Surface Mount |
| Packaging: | Tape & Reel (TR) |
| Supplier Device Package: | PowerPAK® SO-8 Dual |
| Vgs(th) (Max) @ Id: | 2.5V @ 250µA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | Mosfet Array N and P-Channel 60V 30A (Tc), 18A (Tc) 34W (Tc) Surface Mount PowerPAK® SO-8 Dual |
| FET Feature: | Standard |
| Power - Max: | 34W (Tc) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 47 Weeks |
| Email: | sale@wisdommobility.com |
| FET Type: | N and P-Channel |
| Series: | Automotive, AEC-Q101, TrenchFET® |
| Current - Continuous Drain (Id) @ 25°C: | 30A (Tc), 18A (Tc) |
| Other Names: | SQJ560EP-T1_GE3TR |
| Input Capacitance (Ciss) (Max) @ Vds: | 1650pF @ 25V |
| Rds On (Max) @ Id, Vgs: | 12 mOhm @ 10A, 10V, 52.6 mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs: | 30nC @ 10V, 45nC @ 10V |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
Introduce
We can supply SQJ560EP-T1_GE3 , send us a request quote to request SQJ560EP-T1_GE3 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SQJ560EP-T1_GE3.The price and lead time for SQJ560EP-T1_GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part SQJ560EP-T1_GE3.We look forward to working with you to establish long-term relations of cooperation
