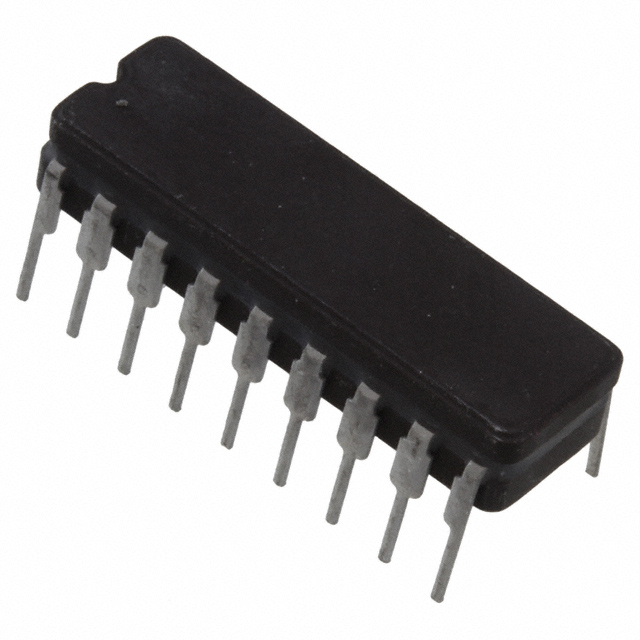

Images are for reference only.
See Product Specifications for product details.
Buy SG2803J-DESC with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy SG2803J-DESC with confidence from wisdommobility.com, 1 Year Warranty
SG2803J-DESC
| Part No | SG2803J-DESC |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS 8NPN DARL 50V 0.5A 18DIP |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:3977 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $125.0965 | $1,2510 | |||
| 10+ | $122.5946 | $6,1297 | |||
| 100+ | $118.8417 | $11,8842 | |||
| 1000+ | $115.0888 | $11,5089 | |||
| 10000+ | $110.0849 | $11,0085 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 1000 @ 350mA, 2V |
|---|---|
| Package / Case: | - |
| Mounting Type: | Through Hole |
| Packaging: | Tube |
| Supplier Device Package: | 18-CDIP |
| Current - Collector (Ic) (Max): | 500mA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | Bipolar (BJT) Transistor Array 8 NPN Darlington 50V 500mA Through Hole 18-CDIP |
| Voltage - Collector Emitter Breakdown (Max): | 50V |
| Power - Max: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Frequency - Transition: | - |
| Email: | sale@wisdommobility.com |
| Vce Saturation (Max) @ Ib, Ic: | 1.6V @ 500µA, 350mA |
| Series: | - |
| Other Names: | 1259-1085 1259-1085-MIL 5962-8605801VA Q10830625 SG2803JDESC |
| Transistor Type: | 8 NPN Darlington |
| Current - Collector Cutoff (Max): | - |
| Operating Temperature: | -55°C ~ 125°C (TA) |
Introduce
We can supply SG2803J-DESC , send us a request quote to request SG2803J-DESC pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SG2803J-DESC.The price and lead time for SG2803J-DESC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part SG2803J-DESC.We look forward to working with you to establish long-term relations of cooperation
