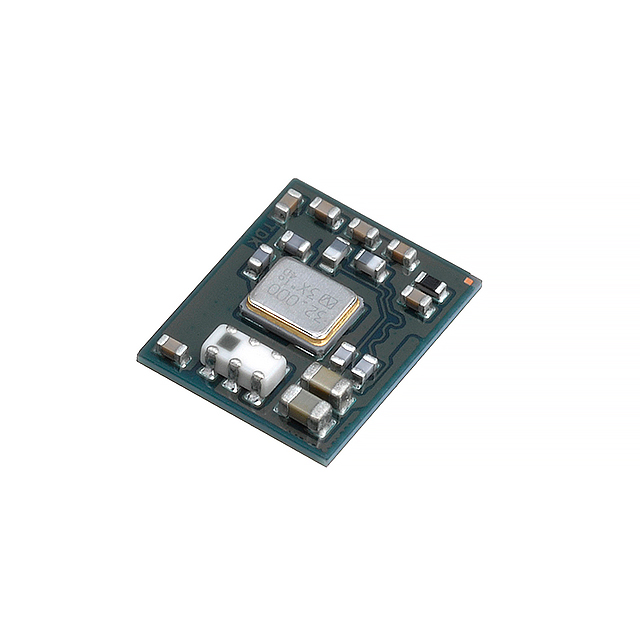

Images are for reference only.
See Product Specifications for product details.
Buy SESUB-PAN-D14580 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy SESUB-PAN-D14580 with confidence from wisdommobility.com, 1 Year Warranty
SESUB-PAN-D14580
| Part No | SESUB-PAN-D14580 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | IC RF TXRX+MCU BLUETOOTH 36-SMD |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:4595 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $6.3976 | $640 | |||
| 10+ | $6.2696 | $3135 | |||
| 100+ | $6.0777 | $6078 | |||
| 1000+ | $5.8858 | $5886 | |||
| 10000+ | $5.6299 | $5630 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Package / Case: | 36-SMD Module |
|---|---|
| Packaging: | Original-Reel® |
| GPIO: | 12 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 36-SMD Module |
| Voltage - Supply: | 2.35 V ~ 3.3 V |
| Data Rate (Max): | - |
| Memory Size: | 32kB OTP, 84kB ROM, 50kB SRAM |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Sensitivity: | -94dBm |
| Frequency: | 2.4GHz |
| Current - Receiving: | 5.4mA |
| Email: | sale@wisdommobility.com |
| Current - Transmitting: | 5mA |
| Series: | - |
| Serial Interfaces: | I²C, SPI, UART |
| Type: | TxRx + MCU |
| Other Names: | 445-174162-6 |
| RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth v4.1 |
| Power - Output: | 0dBm |
| Operating Temperature: | -20°C ~ 70°C |
| Modulation: | - |
Introduce
We can supply SESUB-PAN-D14580 , send us a request quote to request SESUB-PAN-D14580 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SESUB-PAN-D14580.The price and lead time for SESUB-PAN-D14580 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part SESUB-PAN-D14580.We look forward to working with you to establish long-term relations of cooperation
