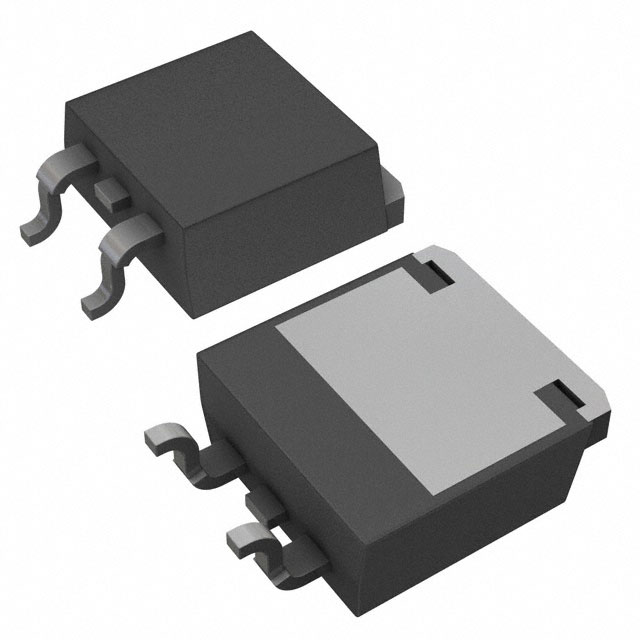

Images are for reference only.
See Product Specifications for product details.
Buy R6020ANJTL with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy R6020ANJTL with confidence from wisdommobility.com, 1 Year Warranty
R6020ANJTL
| Part No | R6020ANJTL |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | MOSFET N-CH 10V DRIVE LPTS |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:9292 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $3.208 | $321 | |||
| 10+ | $3.1438 | $1572 | |||
| 100+ | $3.0476 | $3048 | |||
| 1000+ | $2.9514 | $2951 | |||
| 10000+ | $2.823 | $2823 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 600V |
|---|---|
| Power Dissipation (Max): | 100W (Tc) |
| Package / Case: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Mounting Type: | Surface Mount |
| Packaging: | Tape & Reel (TR) |
| Supplier Device Package: | LPTS |
| Vgs(th) (Max) @ Id: | 4.5V @ 1mA |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | N-Channel 600V 20A (Ta) 100W (Tc) Surface Mount LPTS |
| FET Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Email: | sale@wisdommobility.com |
| FET Type: | N-Channel |
| Series: | - |
| Current - Continuous Drain (Id) @ 25°C: | 20A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds: | 2040pF @ 25V |
| Vgs (Max): | ±30V |
| Rds On (Max) @ Id, Vgs: | 250 mOhm @ 10A, 10V |
| Technology: | MOSFET (Metal Oxide) |
| Gate Charge (Qg) (Max) @ Vgs: | 65nC @ 10V |
| Operating Temperature: | 150°C (TJ) |
Introduce
We can supply R6020ANJTL , send us a request quote to request R6020ANJTL pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number R6020ANJTL.The price and lead time for R6020ANJTL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part R6020ANJTL.We look forward to working with you to establish long-term relations of cooperation
