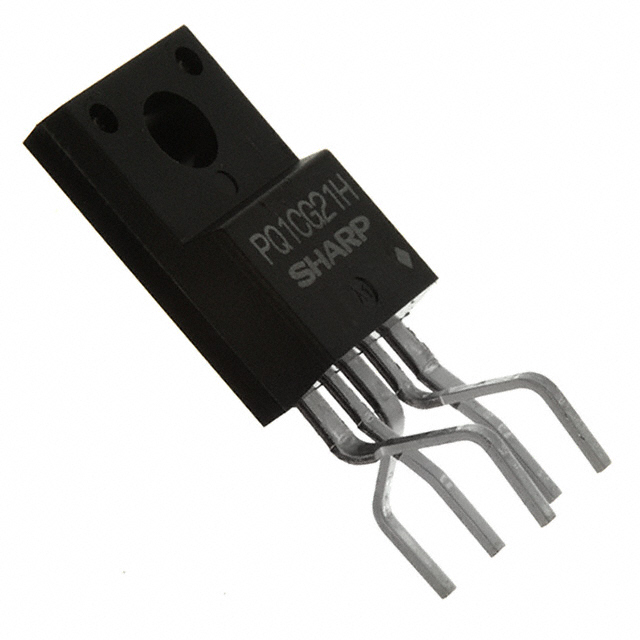

Images are for reference only.
See Product Specifications for product details.
Buy PQ1CG2032FZ with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy PQ1CG2032FZ with confidence from wisdommobility.com, 1 Year Warranty
PQ1CG2032FZ
| Part No | PQ1CG2032FZ |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG BUCK INV ADJ 3.5A TO220 |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:8866 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.36 | $36 | |||
| 10+ | $0.3528 | $176 | |||
| 100+ | $0.342 | $342 | |||
| 1000+ | $0.3312 | $331 | |||
| 10000+ | $0.3168 | $317 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Min Operating Temperature | -20°C |
|---|---|
| Input Voltage (Min) | 8V |
| Output Type | Adjustable |
| Mount | Through Hole |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Number of Functions | 1 |
| Terminal Position | ZIG-ZAG |
| Package / Case | TO-220-5 |
| JESD-30 Code | R-PZFM-T5 |
| Number of Terminations | 5 |
| Lead Free | Contains Lead |
| Control Technique | PULSE WIDTH MODULATION |
| RoHS Status | Non-RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Synchronous Rectifier | No |
| Input Voltage-Nom | 12V |
| Output Current | 3A |
| JESD-609 Code | e0 |
| Number of Outputs | 1 |
| Max Operating Temperature | 80°C |
| Peak Reflow Temperature (Cel) | 240 |
| Switcher Configuration | BUCK-BOOST |
| Input Voltage (Max) | 35V |
| Packaging | Tube |
| Part Status | Obsolete |
| Published | 2001 |
| Switching Frequency | 70kHz |
| Output Voltage | -30V |
| Temperature Grade | COMMERCIAL EXTENDED |
Introduce
We can supply PQ1CG2032FZ , send us a request quote to request PQ1CG2032FZ pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PQ1CG2032FZ.The price and lead time for PQ1CG2032FZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part PQ1CG2032FZ.We look forward to working with you to establish long-term relations of cooperation
