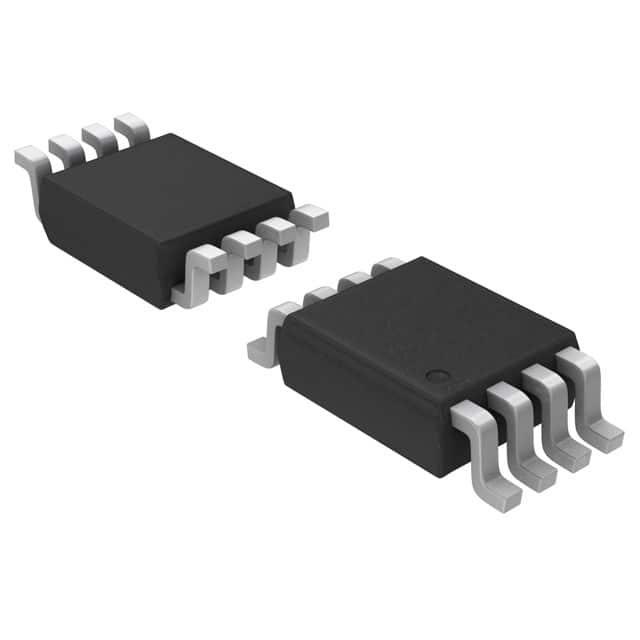

Images are for reference only.
See Product Specifications for product details.
Buy NL37WZ07US with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy NL37WZ07US with confidence from wisdommobility.com, 1 Year Warranty
NL37WZ07US
| Part No | NL37WZ07US |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | IC BUFF/DVR TRPL N-INV OD US8 |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:14896 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.1204 | $12 | |||
| 10+ | $0.118 | $59 | |||
| 100+ | $0.1144 | $114 | |||
| 1000+ | $0.1108 | $111 | |||
| 10000+ | $0.106 | $106 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Min Operating Temperature | -55°C |
|---|---|
| Schmitt Trigger | NO |
| Propagation Delay | 3.5 ns |
| Output Characteristics | OPEN-DRAIN |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Max Supply Voltage | 5.5V |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Height Seated (Max) | 0.9mm |
| Number of Functions | 3 |
| Terminal Position | DUAL |
| Technology | CMOS |
| Logic Function | Buffer, Inverting |
| Terminal Form | GULL WING |
| Number of Pins | 8 |
| Number of Terminations | 8 |
| Polarity | Non-Inverting |
| Supply Voltage | 1.8V |
| Number of Elements | 3 |
| Width | 2mm |
| Lead Free | Contains Lead |
| Qualification Status | Not Qualified |
| RoHS Status | Non-RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 |
| Load Capacitance | 50pF |
| Power Dissipation-Max | 250mW |
| Number of Bits per Element | 1 |
| Packing Method | TAPE AND REEL |
| JESD-609 Code | e0 |
| Pin Count | 8 |
| High Level Output Current | -32mA |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Max Operating Temperature | 125°C |
| Peak Reflow Temperature (Cel) | 240 |
| Subcategory | Gates |
| Max I(ol) | 0.024 A |
| Packaging | Cut Tape |
| Published | 2010 |
| Low Level Output Current | 32mA |
| Terminal Pitch | 0.5mm |
| Reach Compliance Code | not_compliant |
| Temperature Grade | INDUSTRIAL |
Introduce
We can supply NL37WZ07US , send us a request quote to request NL37WZ07US pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NL37WZ07US.The price and lead time for NL37WZ07US depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part NL37WZ07US.We look forward to working with you to establish long-term relations of cooperation
