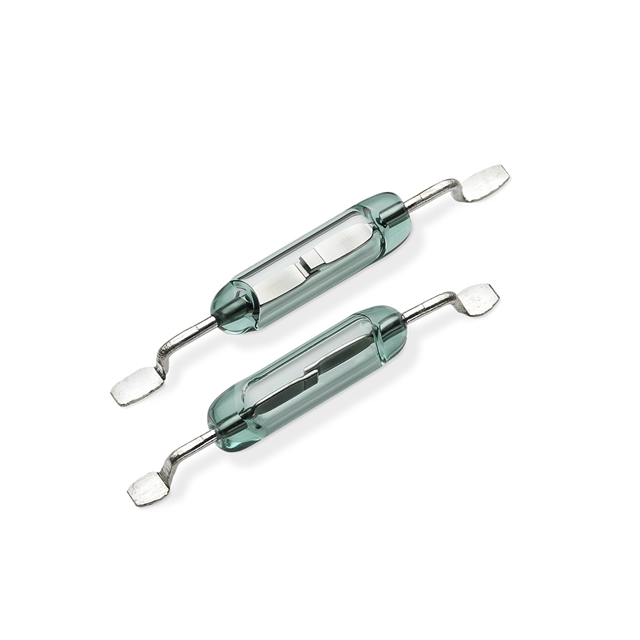

MISM-3V1R-8-12.5
| Part No | MISM-3V1R-8-12.5 |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | SWITCH REED SPST-NO 180MA 120V |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:3966 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $2.5256 | $253 | |||
| 10+ | $2.4751 | $1238 | |||
| 100+ | $2.3993 | $2399 | |||
| 1000+ | $2.3236 | $2324 | |||
| 10000+ | $2.2225 | $2223 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Power - Rated: | 10W |
|---|---|
| Release Range: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 21 Weeks |
| Termination Style: | Gull Wing |
| Email: | sale@wisdommobility.com |
| Capacitance: | 0.3pF |
| Height Above Board: | 0.090" (2.28mm) |
| Operating Temperature: | -40°C ~ 125°C |
| Circuit: | SPST-NO |
| Mounting Type: | Surface Mount |
| Packaging: | Cut Tape (CT) |
| Current - Switching: | 180mA (AC), 250mA (DC) |
| Length - Overall: | 0.540" (13.72mm) |
| Operate Range: | 8 ~ 12AT |
| Current - Carry: | 500mA (DC) |
| Detailed Description: | Glass Body Reed Switch SPST-NO 8 ~ 12AT Operate Range 10W 180mA (AC), 250mA (DC) 120V Surface Mount |
| Release Time: | 0.2ms |
| Voltage - Switching AC: | 120V |
| Size - Body: | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) |
| Voltage - Switching DC: | 170V |
| Series: | MISM-3V1 |
| Type: | Glass Body |
| Other Names: | F7842CT |
| Operate Time: | 0.45ms |
Introduce
We can supply MISM-3V1R-8-12.5 , send us a request quote to request MISM-3V1R-8-12.5 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MISM-3V1R-8-12.5.The price and lead time for MISM-3V1R-8-12.5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part MISM-3V1R-8-12.5.We look forward to working with you to establish long-term relations of cooperation
