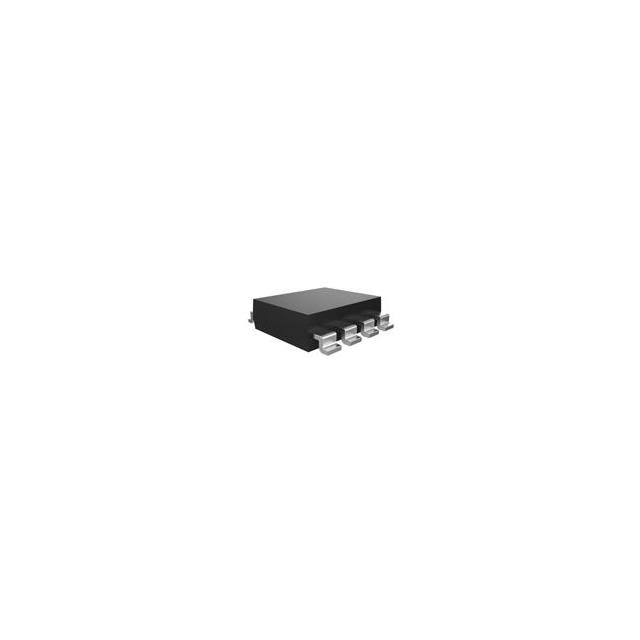

Images are for reference only.
See Product Specifications for product details.
Buy MCQ4503-TP with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy MCQ4503-TP with confidence from wisdommobility.com, 1 Year Warranty
MCQ4503-TP
| Part No | MCQ4503-TP |
|---|---|
| Manufacturer | Micro Commercial Components |
| Description | N&P-CHANNEL MOSFET, SOP-8 PACKAG |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 30V |
|---|---|
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type: | Surface Mount |
| Packaging: | Tape & Reel (TR) |
| Supplier Device Package: | 8-SOP |
| Vgs(th) (Max) @ Id: | 3V @ 250µA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | Mosfet Array N and P-Channel 30V 6.3A, 8.6A 1.4W Surface Mount 8-SOP |
| FET Feature: | - |
| Power - Max: | 1.4W |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Email: | sale@wisdommobility.com |
| FET Type: | N and P-Channel |
| Series: | - |
| Current - Continuous Drain (Id) @ 25°C: | 6.3A, 8.6A |
| Other Names: | MCQ4503-TPMSTR |
| Input Capacitance (Ciss) (Max) @ Vds: | 1380pF @ 25V |
| Rds On (Max) @ Id, Vgs: | 36 mOhm @ 6A, 10V |
| Gate Charge (Qg) (Max) @ Vgs: | 20nC @ 4.5V |
| Operating Temperature: | 150°C (TJ) |
Introduce
We can supply MCQ4503-TP , send us a request quote to request MCQ4503-TP pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MCQ4503-TP.The price and lead time for MCQ4503-TP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part MCQ4503-TP.We look forward to working with you to establish long-term relations of cooperation
