LV5636VH-MPB-H

Part No LV5636VH-MPB-H
Manufacturer ON Semiconductor
Description Switching Voltage Regulators DC-DC CONVERTER FOR LNB
Lead Free Status / RoHS Status Lead Free / RoHS compliant
Availability:8693 pcs
Quantity Unit Price Ext. Price
1+ $1.0062 $101
10+ $0.9861 $493
100+ $0.9559 $956
1000+ $0.9257 $926
10000+ $0.8855 $886
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Submit a Request A Quote on quantities greater than those displayed.
Target Price:(USD)
Quantity:
Total:
$0.00
  • Part No
  • Company Name
  • Contact Name
  • E-mail
  • Phone
  • Country

Specifications

Data sheet

Min Supply Voltage8V
MountSurface Mount
Terminal FinishTin/Bismuth (Sn/Bi)
Terminal PositionDUAL

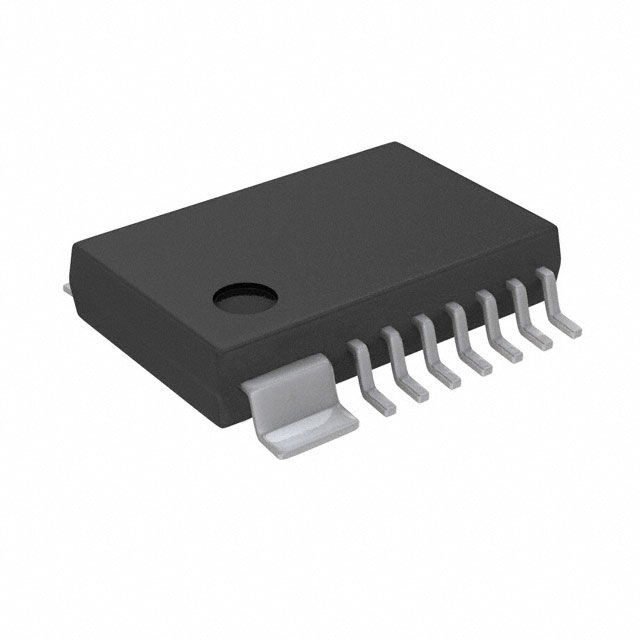

Package / Case14-LSSOP (0.173, 4.40mm Width) + 2 Heat Tabs
TechnologyBICMOS
Min Input Voltage8V
Lifecycle StatusLIFETIME (Last Updated: 2 days ago)
Voltage - OutputMultiple
Terminal FormGULL WING
Number of Pins14
Number of Terminations14
Supply Voltage12V
Width4.4mm
Lead FreeLead Free
Qualification StatusNot Qualified
Pbfree Codeyes
RoHS StatusRoHS Compliant
Voltage - Input8V~23V
Moisture Sensitivity Level (MSL)3 (168 Hours)
Operating Temperature-30°C~85°C
Nominal Supply Current4mA
ApplicationsConverter, BS/CS Antenna
REACH SVHCNo SVHC
Output Current800mA
Mounting TypeSurface Mount
JESD-609 Codee6
Pin Count14
Number of Outputs2
SubcategoryPower Management Circuits
Operating Supply Voltage23V
Halogen FreeHalogen Free
PackagingTube
Part StatusObsolete
Published2011
Switching Frequency1MHz
Terminal Pitch0.635mm
Max Input Voltage23V
Base Part NumberLV5636

Introduce

We can supply LV5636VH-MPB-H , send us a request quote to request LV5636VH-MPB-H pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LV5636VH-MPB-H.The price and lead time for LV5636VH-MPB-H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part LV5636VH-MPB-H.We look forward to working with you to establish long-term relations of cooperation
