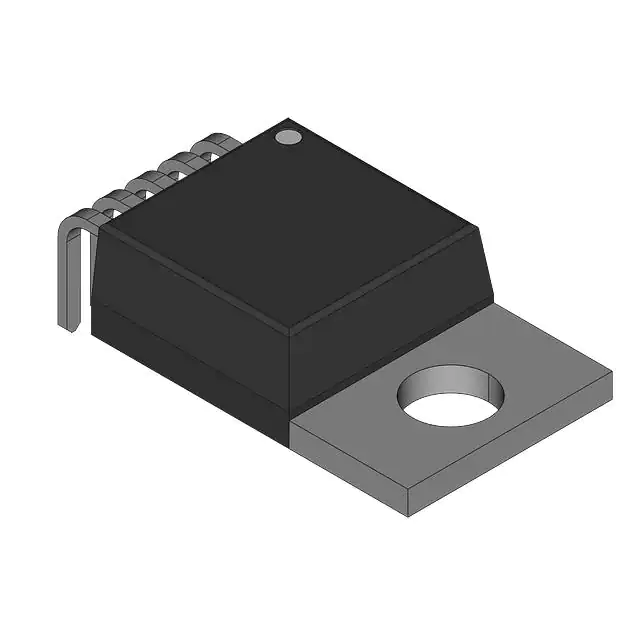

Images are for reference only.
See Product Specifications for product details.
Buy IPS511 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy IPS511 with confidence from wisdommobility.com, 1 Year Warranty
IPS511
| Part No | IPS511 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IPS511 Series 35V 135mOhm Fully Protected High Side Power Mosfet Switch-TO-220-5 |
| Lead Free Status / RoHS Status | Contains lead / RoHS compliant |
| Availability:12872 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $1.096 | $110 | |||
| 10+ | $1.0741 | $537 | |||
| 100+ | $1.0412 | $1041 | |||
| 1000+ | $1.0083 | $1008 | |||
| 10000+ | $0.9645 | $965 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Nominal Supply Current | 700 µA |
|---|---|
| Min Operating Temperature | -40 °C |
| Output Current | 3 A |
| Mount | Through Hole |
| Current Rating | 1.4 A |
| Output Configuration | High Side |
| RoHS | Compliant |
| Radiation Hardening | No |
| Number of Outputs | 1 |
| Resistance | 110 mΩ |
| Max Operating Temperature | 150 °C |
| Power Dissipation | 25 W |
| Drain to Source Resistance | 130 mΩ |
| Fault Protection | Over Temperature |
| Number of Channels | 1 |
| Output Current per Channel | 1.7 A |
| Packaging | Bulk |
| Number of Pins | 5 |
| Lead Free | Contains Lead |
| Interface | On/Off |
| Max Output Current | 1.7 A |
| Case/Package | TO-220-5 |
| Max Power Dissipation | 25 W |
Introduce
We can supply IPS511 , send us a request quote to request IPS511 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPS511.The price and lead time for IPS511 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part IPS511.We look forward to working with you to establish long-term relations of cooperation
