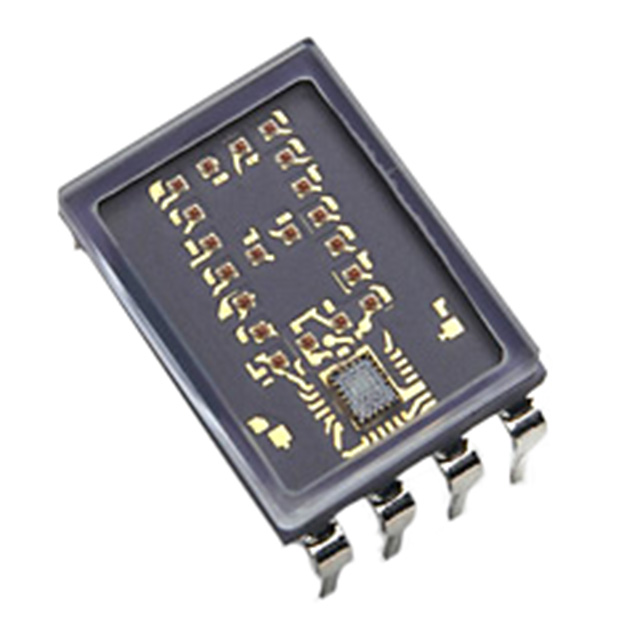

Images are for reference only.
See Product Specifications for product details.
Buy HDSP-0861 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-0861 with confidence from wisdommobility.com, 1 Year Warranty
HDSP-0861
| Part No | HDSP-0861 |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | LED Display Yellow, 585nm Hex and Numeric |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:3473 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $31.1688 | $3117 | |||
| 10+ | $30.5454 | $1,5273 | |||
| 100+ | $29.6104 | $2,9610 | |||
| 1000+ | $28.6753 | $2,8675 | |||
| 10000+ | $27.4285 | $2,7429 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Viewing Area (height) | 7.4 mm |
|---|---|
| Min Operating Temperature | -55 °C |
| Min Supply Voltage | 4.5 V |
| Mount | Through Hole |
| Reverse Voltage | 5 V |
| Max Supply Voltage | 5.5 V |
| RoHS | Compliant |
| Depth | 13.5 mm |
| Number of Pins | 8 |
| Height | 13.4874 mm |
| Number of Elements | 20 |
| Character Height | 7.4 mm |
| Width | 10.2108 mm |
| Lead Free | Lead Free |
| Peak Wavelength | 583 nm |
| Max Power Dissipation | 963 mW |
| Test Current | 120 mA |
| Color | Yellow |
| Wavelength | 585 nm |
| Luminous Intensity | 2.39 mcd |
| Dominant Wavelength | 585 nm |
| Max Operating Temperature | 85 °C |
| Power Dissipation | 963 mW |
| Number of Characters | 1 |
| Length | 10.2 mm |
| Illumination Color | Yellow |
| Voltage Rating (DC) | 5 V |
| Forward Voltage | 5.5 V |
| Case/Package | DIP |
Introduce
We can supply HDSP-0861 , send us a request quote to request HDSP-0861 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HDSP-0861.The price and lead time for HDSP-0861 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part HDSP-0861.We look forward to working with you to establish long-term relations of cooperation
