FPF1005

Part No FPF1005
Manufacturer ON Semiconductor
Description ON SEMICONDUCTOR - FPF1005 - Power Load Switch, IntelliMAX, High Side, Active High, 1 Output, 5.5V, 1.5A, MLP-6
Lead Free Status / RoHS Status Lead Free / RoHS compliant
Availability:18345 pcs
Quantity Unit Price Ext. Price
1+ $0.8265 $83
10+ $0.81 $405
100+ $0.7852 $785
1000+ $0.7604 $760
10000+ $0.7273 $727
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Submit a Request A Quote on quantities greater than those displayed.
Target Price:(USD)
Quantity:
Total:
$0.00
  • Part No
  • Company Name
  • Contact Name
  • E-mail
  • Phone
  • Country

Specifications

Data sheet

MountSurface Mount
FeatureLoad Discharge, Slew Rate Controlled
Radiation HardeningNo
Number of Functions1

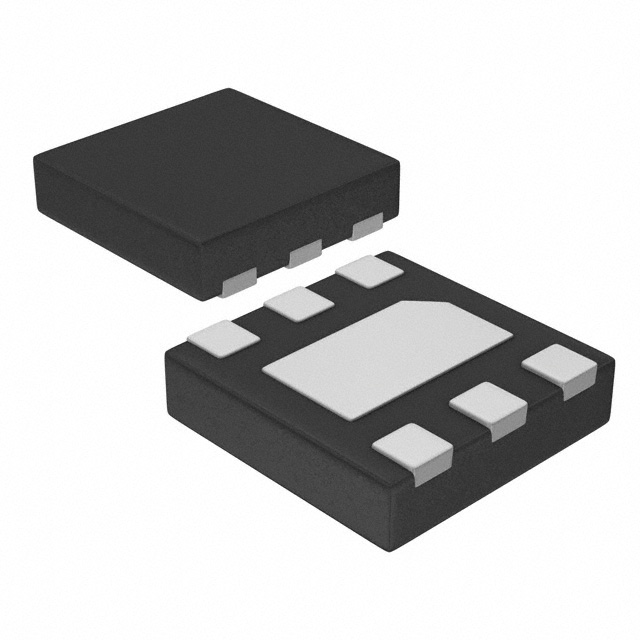

Package / Case6-VDFN Exposed Pad
Min Input Voltage1.2V
Lifecycle StatusACTIVE (Last Updated: 2 days ago)
Number of Pins6
Built-in ProtectionsTRANSIENT
Max Power Dissipation1.2W
Moisture Sensitivity Level (MSL)1 (Unlimited)
Operating Temperature-40°C~85°C TA
Voltage - Load1.2V~5.5V
Mounting TypeSurface Mount
Weight60mg
Resistance50mOhm
Power Dissipation1.2W
Turn-Off Delay Time50 μs
PackagingTape & Reel (TR)
Current1.5A
Output Voltage6V
Max Input Voltage5.5V
Max Output Current1.5A
Output TypeP-Channel
Output ConfigurationHigh Side
Driver Number of Bits1
Terminal FinishNickel/Palladium/Gold (Ni/Pd/Au)
Terminal PositionDUAL
Voltage5.5V
Number of Terminations6
Supply Voltage3.3V
Height725μm
ECCN CodeEAR99
Width2mm
Lead FreeLead Free
Voltage - Supply (Vcc/Vdd)Not Required
Pbfree Codeyes
RoHS StatusROHS3 Compliant
Input TypeNon-Inverting
REACH SVHCNo SVHC
Current Rating1.5A
Switch TypeGeneral Purpose
TerminationSMD/SMT
Ratio - Input:Output1:1
Rds On (Typ)50m Ω
JESD-609 Codee4
Factory Lead Time4 Weeks
Number of Outputs1
SeriesIntelliMAX™
Nominal Input Voltage5.5V
Length2mm
SubcategoryPeripheral Drivers
Part StatusActive
Published1996
Turn On Delay Time10 μs
InterfaceOn/Off
Base Part NumberFPF1005

Introduce

We can supply FPF1005 , send us a request quote to request FPF1005 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FPF1005.The price and lead time for FPF1005 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part FPF1005.We look forward to working with you to establish long-term relations of cooperation
