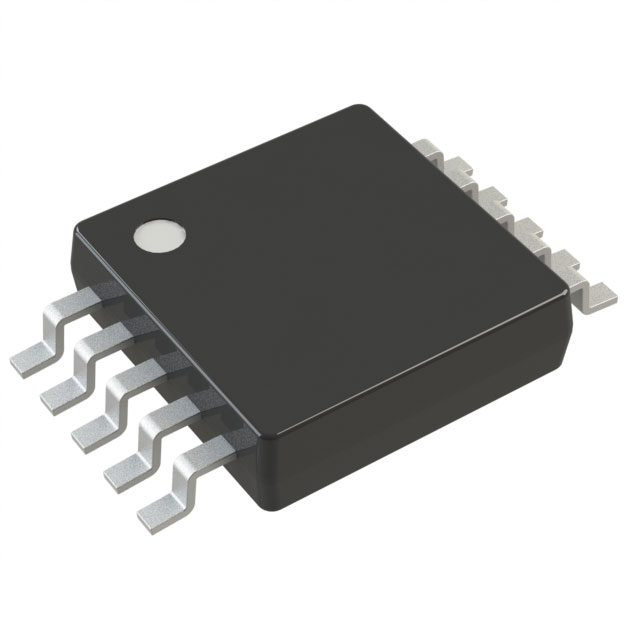

Images are for reference only.
See Product Specifications for product details.
Buy DGD0547FN-7 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy DGD0547FN-7 with confidence from wisdommobility.com, 1 Year Warranty
DGD0547FN-7
| Part No | DGD0547FN-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC GATE DRV HALF-BRDG DFN3030-10 |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:5394 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.23 | $23 | |||
| 10+ | $0.225 | $113 | |||
| 100+ | $0.22 | $220 | |||
| 1000+ | $0.21 | $210 | |||
| 10000+ | $0.2 | $200 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Current-PeakOutput(SourceSink) | 1.5A, 2A |
|---|---|
| DrivenConfiguration | Half-Bridge |
| Rise/FallTime(Typ) | 16ns, 12ns |
| OperatingTemperature | -40°C ~ 125°C (TA) |
| ProductStatus | Obsolete |
| Voltage-Supply | 0.3V ~ 60V |
| Package/Case | 10-WFDFN Exposed Pad |
| MountingType | Surface Mount |
| HighSideVoltage-Max(Bootstrap) | 50 V |
| NumberofDrivers | 2 |
| Series | - |
| InputType | CMOS/TTL |
| Package | Tape & Reel (TR) |
| GateType | N-Channel MOSFET |
| LogicVoltage-VILVIH | 0.8V, 2.4V |
| ChannelType | Synchronous |
Introduce
We can supply DGD0547FN-7 , send us a request quote to request DGD0547FN-7 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DGD0547FN-7.The price and lead time for DGD0547FN-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part DGD0547FN-7.We look forward to working with you to establish long-term relations of cooperation
