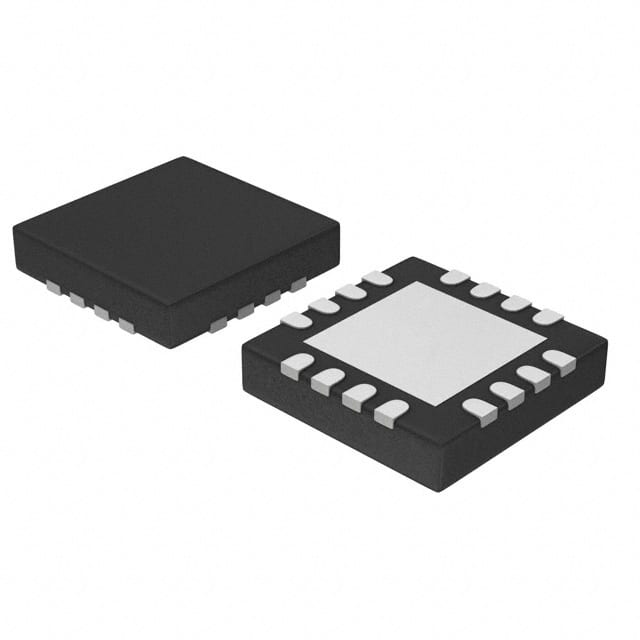

Images are for reference only.
See Product Specifications for product details.
Buy DG2706DN-T1-E4 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy DG2706DN-T1-E4 with confidence from wisdommobility.com, 1 Year Warranty
DG2706DN-T1-E4
| Part No | DG2706DN-T1-E4 |
|---|---|
| Manufacturer | Vishay |
| Description | IC SWITCH QUAD SPDT 16-MINIQFN |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:4937 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.5 | $50 | |||
| 10+ | $0.49 | $245 | |||
| 100+ | $0.47 | $470 | |||
| 1000+ | $0.46 | $460 | |||
| 10000+ | $0.44 | $440 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Switch Circuit: | SPDT |
|---|---|
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Crosstalk: | -90dB @ 1MHz |
| Package / Case: | 16-WFQFN |
| On-State Resistance (Max): | 5.5 Ohm |
| Switch Time (Ton, Toff) (Max): | 45ns, 35ns |
| Voltage - Supply, Single (V+): | 1.65 V ~ 4.3 V |
| Packaging: | Cut Tape (CT) |
| Voltage - Supply, Dual (V±): | - |
| Supplier Device Package: | 16-miniQFN (1.8x2.6) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | 4 Circuit IC Switch 2:1 5.5 Ohm 16-miniQFN (1.8x2.6) |
| Channel-to-Channel Matching (ΔRon): | 300 mOhm |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Channel Capacitance (CS(off), CD(off)): | 16pF |
| Email: | sale@wisdommobility.com |
| Series: | - |
| Base Part Number: | DG2706 |
| Current - Leakage (IS(off)) (Max): | 5nA |
| Other Names: | DG2706DN-T1-E4CT |
| Number of Circuits: | 4 |
| -3db Bandwidth: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Charge Injection: | 3pC |
Introduce
We can supply DG2706DN-T1-E4 , send us a request quote to request DG2706DN-T1-E4 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DG2706DN-T1-E4.The price and lead time for DG2706DN-T1-E4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part DG2706DN-T1-E4.We look forward to working with you to establish long-term relations of cooperation
