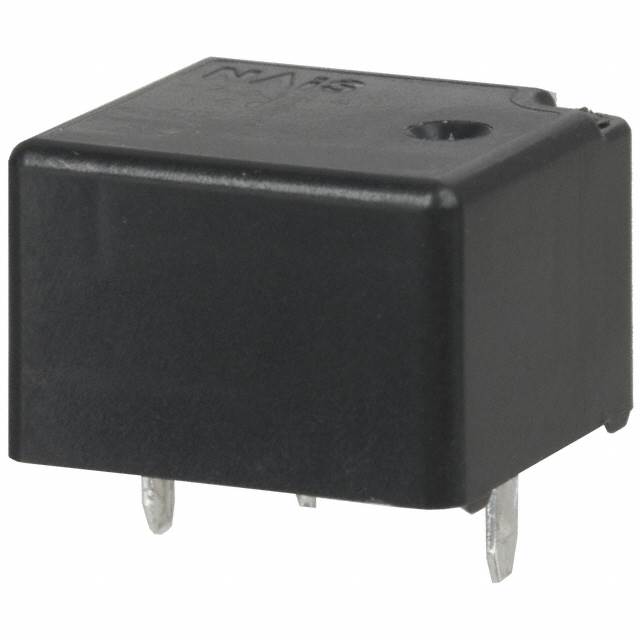

Images are for reference only.
See Product Specifications for product details.
Buy CP1AH-12V with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy CP1AH-12V with confidence from wisdommobility.com, 1 Year Warranty
CP1AH-12V
| Part No | CP1AH-12V |
|---|---|
| Manufacturer | Panasonic |
| Description | CP POWER RELAY 1 FORM A 12V |
| Lead Free Status / RoHS Status | Contains lead / RoHS compliant |
| Availability:5762 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $1.8486 | $185 | |||
| 10+ | $1.8116 | $906 | |||
| 100+ | $1.7562 | $1756 | |||
| 1000+ | $1.7007 | $1701 | |||
| 10000+ | $1.6268 | $1627 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Min Operating Temperature | -40 °C |
|---|---|
| Max Voltage Rating (DC) | 14 V |
| Throw Configuration | SPST |
| Coil Current | 37.5 mA |
| Mount | Through Hole |
| Coil Voltage (DC) | 12 V |
| Termination | Solder |
| Coil Resistance | 320 Ω |
| RoHS | Compliant |
| Depth | 13 mm |
| Max Operating Temperature | 85 °C |
| Length | 14 mm |
| Operate Time | 10 ms |
| Number of Pins | 5 |
| Contact Material | Cadmium, Silver |
| Max Current Rating | 20 A |
| Height | 9.5 mm |
| Power Consumption | 640 mW |
| Width | 13 mm |
| Contact Current Rating | 20 A |
Introduce
We can supply CP1AH-12V , send us a request quote to request CP1AH-12V pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CP1AH-12V.The price and lead time for CP1AH-12V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part CP1AH-12V.We look forward to working with you to establish long-term relations of cooperation
