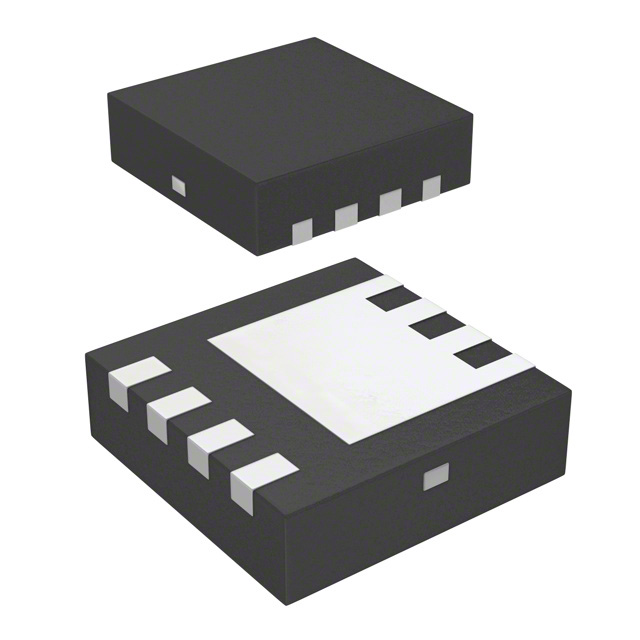

Images are for reference only.
See Product Specifications for product details.
Buy BSZ100N06LS3GATMA1 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy BSZ100N06LS3GATMA1 with confidence from wisdommobility.com, 1 Year Warranty
BSZ100N06LS3GATMA1
| Part No | BSZ100N06LS3GATMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | MOSFET N-CH 60V 20A TSDSON-8 |
| Lead Free Status / RoHS Status | Contains lead / RoHS compliant |
| Availability:19856 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.9657 | $97 | |||
| 10+ | $0.9464 | $473 | |||
| 100+ | $0.9174 | $917 | |||
| 1000+ | $0.8884 | $888 | |||
| 10000+ | $0.8498 | $850 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Min Operating Temperature | -55 °C |
|---|---|
| On-State Resistance | 10 mΩ |
| Gate to Source Voltage (Vgs) | 20 V |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Mount | Surface Mount |
| Turn-On Delay Time | 8 ns |
| RoHS | Compliant |
| Max Dual Supply Voltage | 60 V |
| Max Operating Temperature | 150 °C |
| Drain to Source Voltage (Vdss) | 60 V |
| Power Dissipation | 2.1 W |
| Drain to Source Resistance | 8 mΩ |
| Continuous Drain Current (ID) | 11 A |
| Rise Time | 58 ns |
| Turn-Off Delay Time | 19 ns |
| Halogen Free | Halogen Free |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Packaging | Tape & Reel |
| Number of Pins | 8 |
| Package Quantity | 5000 |
| Number of Elements | 1 |
| Input Capacitance | 2.6 nF |
| Lead Free | Contains Lead |
Introduce
We can supply BSZ100N06LS3GATMA1 , send us a request quote to request BSZ100N06LS3GATMA1 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSZ100N06LS3GATMA1.The price and lead time for BSZ100N06LS3GATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part BSZ100N06LS3GATMA1.We look forward to working with you to establish long-term relations of cooperation
