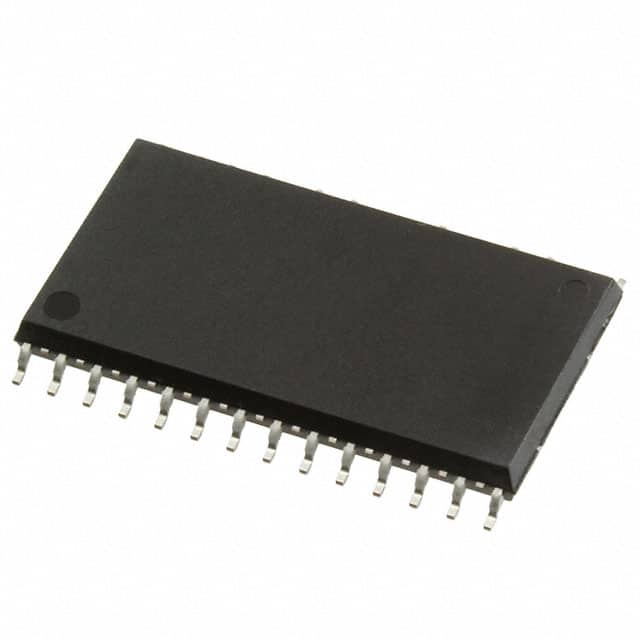

Images are for reference only.
See Product Specifications for product details.
Buy BM6209FS-E2 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy BM6209FS-E2 with confidence from wisdommobility.com, 1 Year Warranty
BM6209FS-E2
| Part No | BM6209FS-E2 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | IC MOTOR DVR 3PH BRUSHLSS 54SSOP |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:8168 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $9.8448 | $984 | |||
| 10+ | $9.6479 | $4824 | |||
| 100+ | $9.3526 | $9353 | |||
| 1000+ | $9.0572 | $9057 | |||
| 10000+ | $8.6634 | $8663 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Applications: | AC Motors |
|---|---|
| Package / Case: | 54-SOP (0.449", 11.40mm Width), 36 Leads |
| Mounting Type: | Surface Mount |
| Packaging: | Tape & Reel (TR) |
| Current - Output / Channel: | 2.5A |
| Supplier Device Package: | SSOP-A54_36 |
| Load Type: | Inductive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | Half Bridge (3) Driver AC Motors Power MOSFET SSOP-A54_36 |
| Voltage - Supply: | 13.5 V ~ 16.5 V |
| Voltage - Load: | 400V (Max) |
| Interface: | Logic |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 17 Weeks |
| Email: | sale@wisdommobility.com |
| Series: | - |
| Current - Peak Output: | 4A |
| Other Names: | BM6209FS-E2TR |
| Technology: | Power MOSFET |
| Features: | Bootstrap Circuit, Status Flag |
| Operating Temperature: | -20°C ~ 125°C (TJ) |
| Rds On (Typ): | 1.7 Ohm |
| Fault Protection: | Current Limiting, Over Temperature, UVLO |
| Output Configuration: | Half Bridge (3) |
Introduce
We can supply BM6209FS-E2 , send us a request quote to request BM6209FS-E2 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BM6209FS-E2.The price and lead time for BM6209FS-E2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part BM6209FS-E2.We look forward to working with you to establish long-term relations of cooperation
