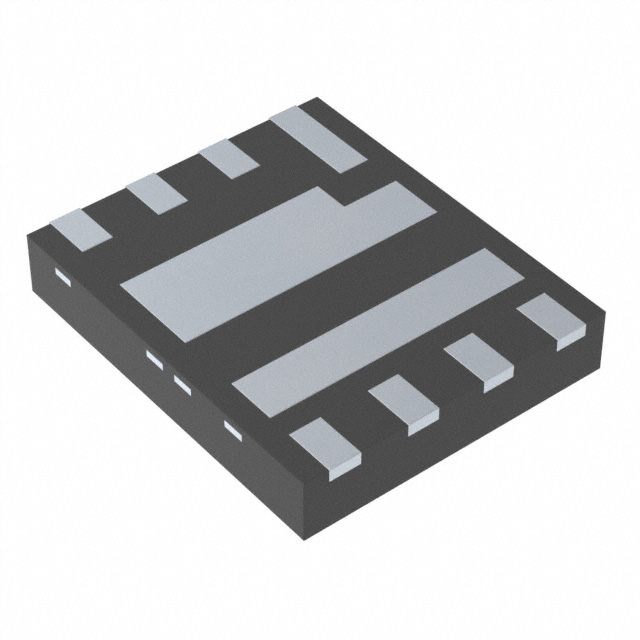

Images are for reference only.
See Product Specifications for product details.
Buy AOE6936 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy AOE6936 with confidence from wisdommobility.com, 1 Year Warranty
AOE6936
| Part No | AOE6936 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET 2 N-CH 30V 55A/85A 8DFN |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:15239 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $1.2136 | $121 | |||
| 10+ | $1.1893 | $595 | |||
| 100+ | $1.1529 | $1153 | |||
| 1000+ | $1.1165 | $1117 | |||
| 10000+ | $1.068 | $1068 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 30V |
|---|---|
| Package / Case: | 8-VDFN Exposed Pad |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 8-DFN (5x6) |
| Vgs(th) (Max) @ Id: | 2.2V @ 250µA, 2.1V @ 250µA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | Mosfet Array 2 N-Channel (Dual) Asymmetrical 30V 55A (Tc), 85A (Tc) 24W, 39W Surface Mount 8-DFN (5x6) |
| FET Feature: | Standard |
| Power - Max: | 24W, 39W |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 26 Weeks |
| Email: | sale@wisdommobility.com |
| FET Type: | 2 N-Channel (Dual) Asymmetrical |
| Series: | - |
| Current - Continuous Drain (Id) @ 25°C: | 55A (Tc), 85A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds: | 1150pF @ 15V, 2270pF @ 15V |
| Rds On (Max) @ Id, Vgs: | 5 mOhm @ 20A, 10V, 2 mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs: | 15nC @ 4.5V, 25nC @ 4.5V |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
Introduce
We can supply AOE6936 , send us a request quote to request AOE6936 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOE6936.The price and lead time for AOE6936 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part AOE6936.We look forward to working with you to establish long-term relations of cooperation
