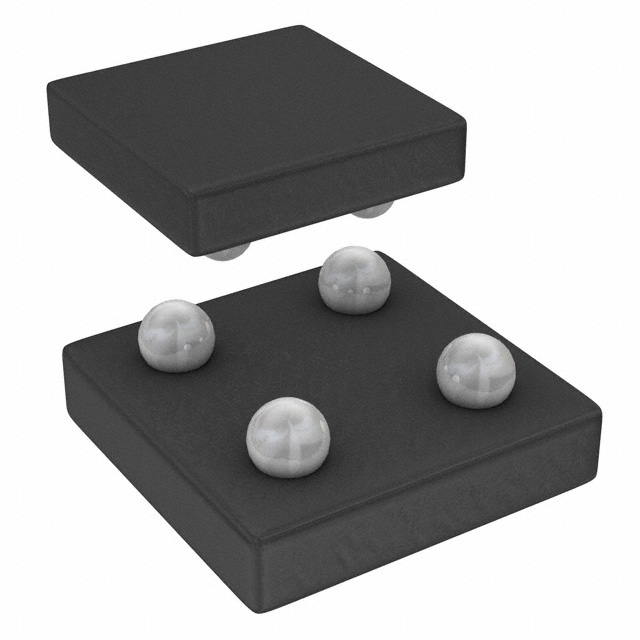

Images are for reference only.
See Product Specifications for product details.
Buy AOC2401 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy AOC2401 with confidence from wisdommobility.com, 1 Year Warranty
AOC2401
| Part No | AOC2401 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET P-CH 30V 3A 4WLCSP |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 30V |
|---|---|
| Power Dissipation (Max): | 550mW (Ta) |
| Package / Case: | 4-SMD, No Lead |
| Mounting Type: | Surface Mount |
| Packaging: | Tape & Reel (TR) |
| Supplier Device Package: | 4-AlphaDFN (1.57x1.57) |
| Vgs(th) (Max) @ Id: | 1.3V @ 250µA |
| Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 10V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | P-Channel 30V 3A (Ta) 550mW (Ta) Surface Mount 4-AlphaDFN (1.57x1.57) |
| FET Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Email: | sale@wisdommobility.com |
| FET Type: | P-Channel |
| Series: | - |
| Current - Continuous Drain (Id) @ 25°C: | 3A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds: | 1327pF @ 15V |
| Vgs (Max): | ±12V |
| Rds On (Max) @ Id, Vgs: | 41 mOhm @ 1.5A, 10V |
| Technology: | MOSFET (Metal Oxide) |
| Gate Charge (Qg) (Max) @ Vgs: | 40nC @ 10V |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
Introduce
We can supply AOC2401 , send us a request quote to request AOC2401 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOC2401.The price and lead time for AOC2401 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part AOC2401.We look forward to working with you to establish long-term relations of cooperation
