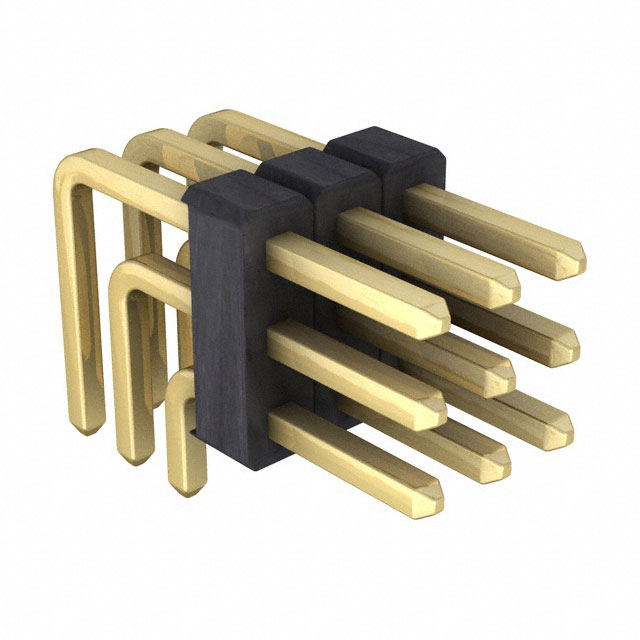

Images are for reference only.
See Product Specifications for product details.
Buy 894-70-024-20-001101 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy 894-70-024-20-001101 with confidence from wisdommobility.com, 1 Year Warranty
894-70-024-20-001101
| Part No | 894-70-024-20-001101 |
|---|---|
| Manufacturer | Preci-Dip |
| Description | CONN HEADER R/A 24POS 2.54MM |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:14760 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $3.5401 | $354 | |||
| 10+ | $3.4693 | $1735 | |||
| 100+ | $3.3631 | $3363 | |||
| 1000+ | $3.2569 | $3257 | |||
| 10000+ | $3.1153 | $3115 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Insulation Height | 0.300" (7.62mm) |
|---|---|
| Ingress Protection | - |
| Voltage Rating | 150VDC |
| Contact Finish Thickness - Mating | Flash |
| Current Rating (Amps) | 3A |
| Contact Type | Male Pin |
| Material Flammability Rating | UL94 V-0 |
| Product Status | Active |
| Connector Type | Header |
| Contact Material | Brass |
| Style | Board to Board |
| Pitch - Mating | 0.100" (2.54mm) |
| Features | - |
| Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish - Mating | Gold |
| Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 |
| Number of Positions | 24 |
| Termination | Solder |
| Mounting Type | Through Hole, Right Angle |
| Fastening Type | Push-Pull |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Series | 894 |
| Contact Shape | Square |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Insulation Color | Black |
| Number of Positions Loaded | All |
| Contact Length - Post | 0.118" (3.00mm) |
| Package | Bulk |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
Introduce
We can supply 894-70-024-20-001101 , send us a request quote to request 894-70-024-20-001101 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 894-70-024-20-001101.The price and lead time for 894-70-024-20-001101 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part 894-70-024-20-001101.We look forward to working with you to establish long-term relations of cooperation
