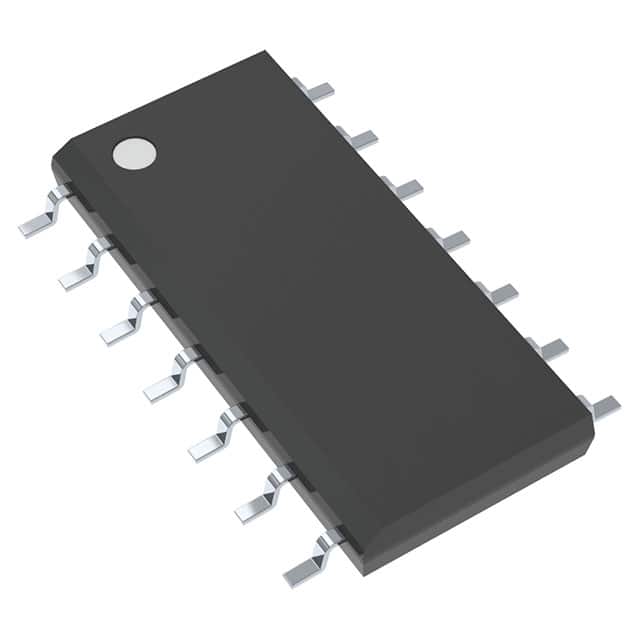

Images are for reference only.
See Product Specifications for product details.
Buy 74F74SJ with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy 74F74SJ with confidence from wisdommobility.com, 1 Year Warranty
74F74SJ
| Part No | 74F74SJ |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | IC FF D-TYPE DUAL 1BIT 14SOP |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:17272 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.2436 | $24 | |||
| 10+ | $0.2387 | $119 | |||
| 100+ | $0.2314 | $231 | |||
| 1000+ | $0.2241 | $224 | |||
| 10000+ | $0.2144 | $214 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Clock Frequency | 125MHz |
|---|---|
| Min Operating Temperature | 0°C |
| Propagation Delay | 8 ns |
| Output Type | Differential |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Trigger Type | Positive Edge |
| Max Supply Voltage | 5.5V |
| Clock Edge Trigger Type | Positive Edge |
| Supplier Device Package | 14-SOP |
| Function | Set(Preset) and Reset |
| Package / Case | 14-SOIC (0.209, 5.30mm Width) |
| Logic Function | AND, D-Type, Flip-Flop |
| Voltage - Supply | 4.5V~5.5V |
| Number of Pins | 14 |
| Polarity | Non-Inverting |
| Number of Bits | 2 |
| Number of Elements | 2 |
| Lead Free | Lead Free |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Operating Temperature | 0°C~70°C TA |
| Max Propagation Delay @ V, Max CL | 6.8ns @ 5V, 50pF |
| Current - Quiescent (Iq) | 16mA |
| Number of Bits per Element | 1 |
| Number of Input Lines | 4 |
| Mounting Type | Surface Mount |
| High Level Output Current | -1mA |
| Max Operating Temperature | 70°C |
| Series | 74F |
| Type | D-Type |
| Number of Output Lines | 2 |
| Operating Supply Voltage | 5V |
| Packaging | Tube |
| Part Status | Obsolete |
| Frequency | 125MHz |
| Low Level Output Current | 20mA |
| Number of Circuits | 2 |
| Turn On Delay Time | 5.3 ns |
| Base Part Number | 74F74 |
| Current - Output High, Low | 1mA 20mA |
Introduce
We can supply 74F74SJ , send us a request quote to request 74F74SJ pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 74F74SJ.The price and lead time for 74F74SJ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part 74F74SJ.We look forward to working with you to establish long-term relations of cooperation
