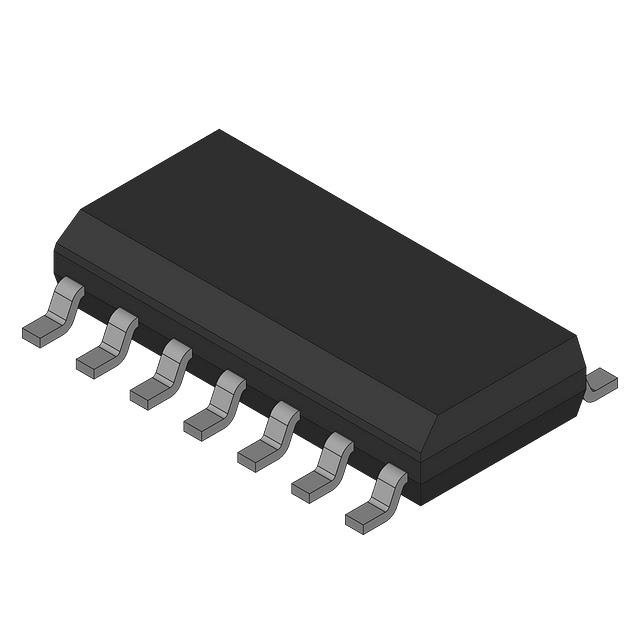

Images are for reference only.
See Product Specifications for product details.
Buy 74F20SJX with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy 74F20SJX with confidence from wisdommobility.com, 1 Year Warranty
74F20SJX
| Part No | 74F20SJX |
|---|---|
| Manufacturer | Rochester Electronics |
| Description | NAND GATE |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:11572 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.2314 | $23 | |||
| 10+ | $0.2268 | $113 | |||
| 100+ | $0.2198 | $220 | |||
| 1000+ | $0.2129 | $213 | |||
| 10000+ | $0.2036 | $204 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Surface Mount | YES |
|---|---|
| Terminal Finish | MATTE TIN |
| Number of Functions | 2 |
| Terminal Position | DUAL |
| Package / Case | 14-SOIC (0.209, 5.30mm Width) |
| Technology | TTL |
| Voltage - Supply | 4.5V~5.5V |
| Number of Inputs | 4 |
| Terminal Form | GULL WING |
| Number of Terminations | 14 |
| Supply Voltage-Max (Vsup) | 5.5V |
| Supply Voltage | 5V |
| Width | 5.3mm |
| Qualification Status | Not Qualified |
| Pbfree Code | yes |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Level - High | 2V |
| Operating Temperature | 0°C~70°C |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Logic Type | NAND Gate |
| Mounting Type | Surface Mount |
| JESD-609 Code | e3 |
| Pin Count | 14 |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Logic Level - Low | 0.8V |
| Peak Reflow Temperature (Cel) | 260 |
| Series | 74F |
| Propagation Delay (tpd) | 6 ns |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Family | F/FAST |
| Number of Circuits | 2 |
| Reach Compliance Code | unknown |
| Current - Output High, Low | 1mA 20mA |
Introduce
We can supply 74F20SJX , send us a request quote to request 74F20SJX pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 74F20SJX.The price and lead time for 74F20SJX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part 74F20SJX.We look forward to working with you to establish long-term relations of cooperation
