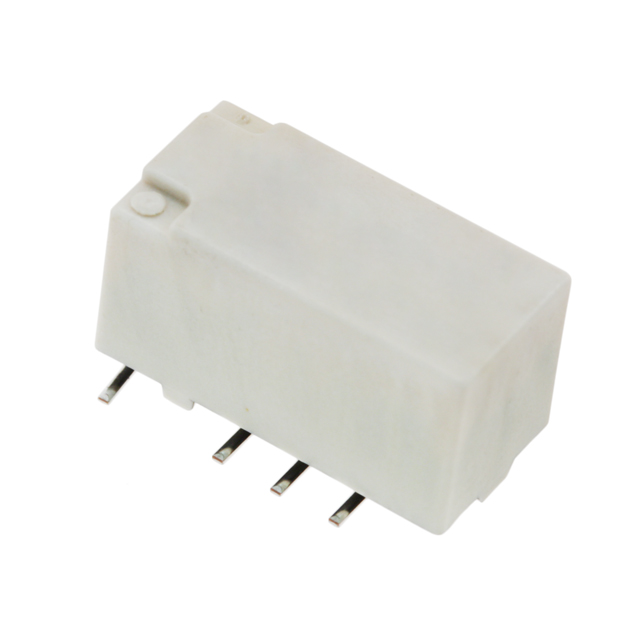

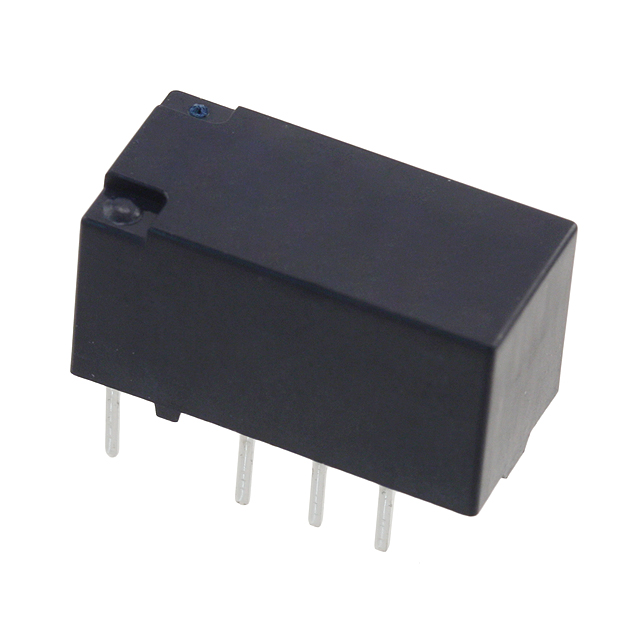

Images are for reference only.
See Product Specifications for product details.
Buy TXD2SA-2M-3V-Z with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy TXD2SA-2M-3V-Z with confidence from wisdommobility.com, 1 Year Warranty
TXD2SA-2M-3V-Z
| Part No | TXD2SA-2M-3V-Z |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPDT 1A 110V |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:3496 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $2.944 | $294 | |||
| 10+ | $2.8851 | $1443 | |||
| 100+ | $2.7968 | $2797 | |||
| 1000+ | $2.7085 | $2709 | |||
| 10000+ | $2.5907 | $2591 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Min Operating Temperature | -40 °C |
|---|---|
| Coil Power | 250 mW |
| Max Voltage Rating (DC) | 110 V |
| Throw Configuration | DPDT |
| Coil Current | 83.3 mA |
| Mount | Surface Mount |
| Coil Voltage (DC) | 3 V |
| Termination | Gull Wing |
| Coil Resistance | 36 Ω |
| RoHS | Compliant |
| Relay Type | General Purpose |
| Insertion Loss (dB) | 0.8 dB |
| Max Operating Temperature | 85 °C |
| Operate Time | 4 ms |
| Number of Pins | 8 |
| Contact Material | Gold, Silver |
| Max Current Rating | 1 A |
| Release Time | 4 ms |
| Coil Type | Non-Latching |
| Power Consumption | 250 mW |
| Lead Free | Lead Free |
| Contact Current Rating | 1 A |
Introduce
We can supply TXD2SA-2M-3V-Z , send us a request quote to request TXD2SA-2M-3V-Z pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TXD2SA-2M-3V-Z.The price and lead time for TXD2SA-2M-3V-Z depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part TXD2SA-2M-3V-Z.We look forward to working with you to establish long-term relations of cooperation
