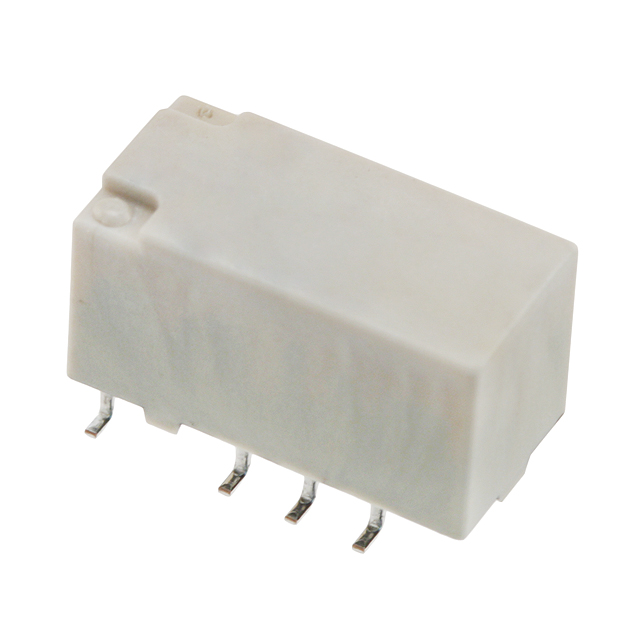

TX2SA-L-9V
| Part No | TX2SA-L-9V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY TELECOM DPDT 2A 220V |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:2622 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $3.1929 | $319 | |||
| 10+ | $3.129 | $1565 | |||
| 100+ | $3.0333 | $3033 | |||
| 1000+ | $2.9375 | $2938 | |||
| 10000+ | $2.8098 | $2810 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Min Operating Temperature | -40 °C |
|---|---|
| Coil Current | 11.1 mA |
| Mount | Surface Mount |
| Coil Voltage (DC) | 9 V |
| RoHS | Compliant |
| Depth | 9.4 mm |
| Relay Type | Telecom |
| Insertion Loss (dB) | 0.8 dB |
| Operate Time | 4 ms |
| Number of Pins | 8 |
| Contact Material | Gold, Silver |
| Max Current Rating | 2 A |
| Release Time | 4 ms |
| Coil Type | Latching, Single Coil |
| Lead Free | Lead Free |
| Contact Current Rating | 2 A |
| Coil Power | 100 mW |
| Max Voltage Rating (DC) | 220 V |
| Throw Configuration | DPDT |
| Termination | Gull Wing |
| Coil Resistance | 810 Ω |
| Weight | 2 g |
| Max Operating Temperature | 85 °C |
| Length | 15 mm |
| Power Consumption | 100 mW |
Introduce
We can supply TX2SA-L-9V , send us a request quote to request TX2SA-L-9V pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TX2SA-L-9V.The price and lead time for TX2SA-L-9V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part TX2SA-L-9V.We look forward to working with you to establish long-term relations of cooperation
