RN46A1(TE85L,F)
| Part No | RN46A1(TE85L,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | PNP + NPN BRT Q1BSR=22KOHM Q1BER |
| Lead Free Status / RoHS Status | Contains lead / RoHS compliant |
| Availability:4751 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.3185 | $32 | |||
| 10+ | $0.3121 | $156 | |||
| 100+ | $0.3026 | $303 | |||
| 1000+ | $0.293 | $293 | |||
| 10000+ | $0.2803 | $280 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Voltage-CollectorEmitterBreakdown(Max) | 50V |
|---|---|
| VceSaturation(Max)@Ib | 500nA |
| ProductStatus | Obsolete |
| Package/Case | - |
| TransistorType | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Grade | |
| MountingType | SM6 |
| Current-CollectorCutoff(Max) | 300mW |
| Series | - |
| DCCurrentGain(hFE)(Min)@Ic | 70 @ 10mA, 5V / 50 @ 10mA, 5V |
| Frequency-Transition | Surface Mount |
| Qualification | |
| SupplierDevicePackage | - |
| Vce | 300mV @ 250µA, 5mA |
| Current-Collector(Ic)(Max) | 100mA |
| Ic | 200MHz, 250MHz |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® |
| Resistor-Base(R1) | 22kOhms, 10kOhms |

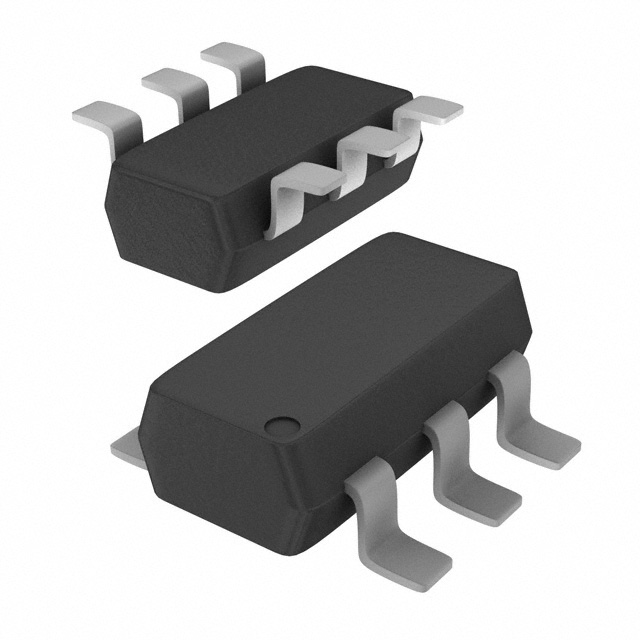

| Power-Max | SC-74, SOT-457 |
| Resistor-EmitterBase(R2) | 22kOhms, 10kOhms |
Introduce
We can supply RN46A1(TE85L,F) , send us a request quote to request RN46A1(TE85L,F) pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RN46A1(TE85L,F).The price and lead time for RN46A1(TE85L,F) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part RN46A1(TE85L,F).We look forward to working with you to establish long-term relations of cooperation
