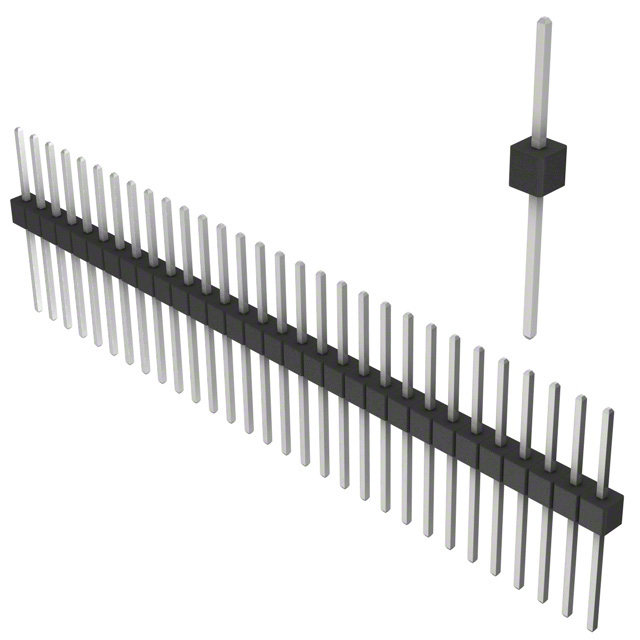

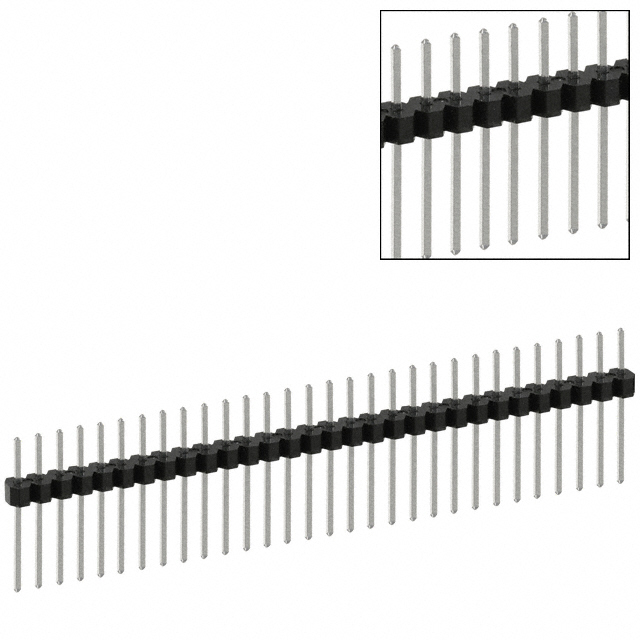

Images are for reference only.
See Product Specifications for product details.
Buy PEC35DABN with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy PEC35DABN with confidence from wisdommobility.com, 1 Year Warranty
PEC35DABN
| Part No | PEC35DABN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER VERT 70POS 2.54MM |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:4473 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $2.6973 | $270 | |||
| 10+ | $2.6434 | $1322 | |||
| 100+ | $2.5624 | $2562 | |||
| 1000+ | $2.4815 | $2482 | |||
| 10000+ | $2.3736 | $2374 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Insulation Height | 0.100" (2.54mm) |
|---|---|
| Ingress Protection | - |
| Voltage Rating | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Current Rating (Amps) | 3A |
| Contact Type | Male Pin |
| Material Flammability Rating | UL94 V-0 |
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Material | Phosphor Bronze |
| Style | Board to Board or Cable |
| Pitch - Mating | 0.100" (2.54mm) |
| Features | - |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish - Mating | Tin |
| Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 |
| Number of Positions | 70 |
| Termination | Solder |
| Mounting Type | Through Hole |
| Fastening Type | Push-Pull |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Series | - |
| Contact Shape | Square |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Insulation Color | Black |
| Number of Positions Loaded | All |
| Contact Length - Post | 0.230" (5.84mm) |
| Package | Bulk |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.560" (14.22mm) |
Introduce
We can supply PEC35DABN , send us a request quote to request PEC35DABN pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PEC35DABN.The price and lead time for PEC35DABN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part PEC35DABN.We look forward to working with you to establish long-term relations of cooperation
