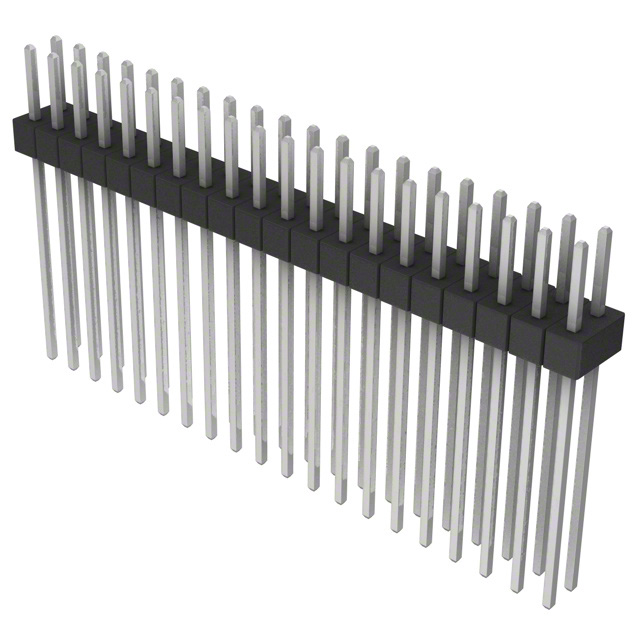

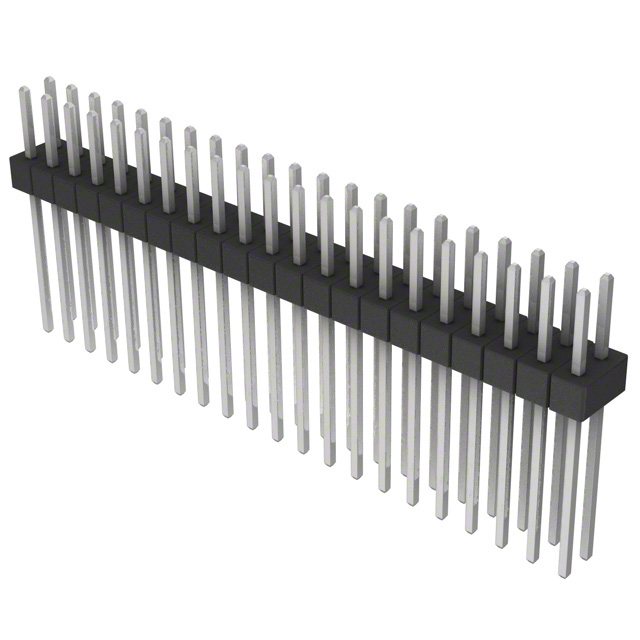

Images are for reference only.
See Product Specifications for product details.
Buy PEC21SAGN with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy PEC21SAGN with confidence from wisdommobility.com, 1 Year Warranty
PEC21SAGN
| Part No | PEC21SAGN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER VERT 21POS 2.54MM |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:2938 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $1.9749 | $197 | |||
| 10+ | $1.9354 | $968 | |||
| 100+ | $1.8762 | $1876 | |||
| 1000+ | $1.8169 | $1817 | |||
| 10000+ | $1.7379 | $1738 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Insulation Height | 0.100" (2.54mm) |
|---|---|
| Ingress Protection | - |
| Voltage Rating | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Current Rating (Amps) | 3A |
| Contact Type | Male Pin |
| Material Flammability Rating | UL94 V-0 |
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Material | Phosphor Bronze |
| Style | Board to Board or Cable |
| Pitch - Mating | 0.100" (2.54mm) |
| Features | - |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish - Mating | Tin |
| Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 1 |
| Number of Positions | 21 |
| Termination | Solder |
| Mounting Type | Through Hole |
| Fastening Type | Push-Pull |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Series | - |
| Contact Shape | Square |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Insulation Color | Black |
| Number of Positions Loaded | All |
| Contact Length - Post | 0.720" (18.29mm) |
| Package | Bulk |
| Shrouding | Unshrouded |
| Overall Contact Length | 1.050" (26.67mm) |
