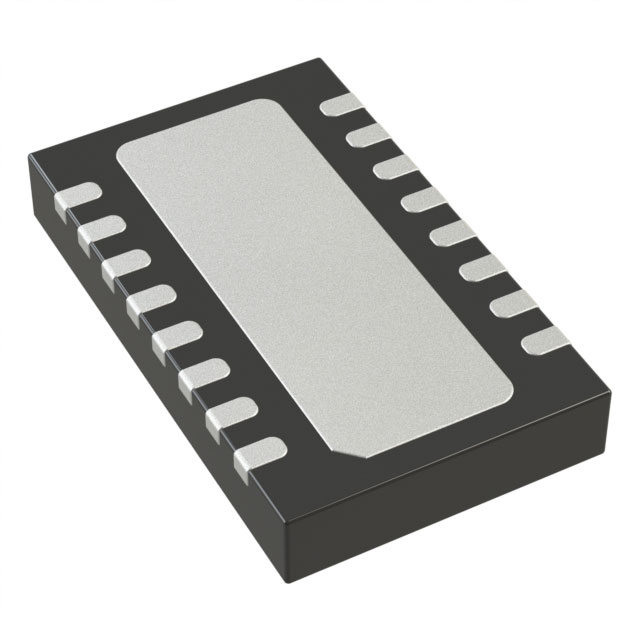

Images are for reference only.
See Product Specifications for product details.
Buy LTC3835IDHC-1#PBF with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy LTC3835IDHC-1#PBF with confidence from wisdommobility.com, 1 Year Warranty
LTC3835IDHC-1#PBF
| Part No | LTC3835IDHC-1#PBF |
|---|---|
| Manufacturer | Analog Devices, Inc. |
| Description | IC REG CTRLR BUCK 16-DFN |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:10976 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $8.8395 | $884 | |||
| 10+ | $8.6627 | $4331 | |||
| 100+ | $8.3975 | $8398 | |||
| 1000+ | $8.1323 | $8132 | |||
| 10000+ | $7.7788 | $7779 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Max Frequency | 580kHz |
|---|---|
| Control Mode | CURRENT-MODE |
| Input Voltage (Min) | 4V |
| Output Type | Transistor Driver |
| Output Configuration | Positive |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Function | Step-Down |
| Height Seated (Max) | 0.8mm |
| Terminal Position | DUAL |
| Package / Case | 16-WFDFN Exposed Pad |
| Technology | CMOS |
| Frequency - Switching | 250kHz~530kHz |
| Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) |
| Number of Pins | 16 |
| Number of Terminations | 16 |
| ECCN Code | EAR99 |
| Width | 3mm |
| Control Technique | PULSE WIDTH MODULATION |
| Voltage - Supply (Vcc/Vdd) | 4V~36V |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Operating Temperature | -40°C~85°C TA |
| Synchronous Rectifier | Yes |
| Input Voltage-Nom | 12V |
| Output Current | 20A |
| Topology | Buck |
| Mounting Type | Surface Mount |
| JESD-609 Code | e3 |
| Factory Lead Time | 8 Weeks |
| Clock Sync | No |
| Number of Outputs | 1 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Peak Reflow Temperature (Cel) | 260 |
| Control Features | Enable, Soft Start, Tracking |
| Duty Cycle (Max) | 99.4% |
| Switcher Configuration | PUSH-PULL |
| Length | 5mm |
| Subcategory | Switching Regulator or Controllers |
| Input Voltage (Max) | 36V |
| Packaging | Tube |
| Part Status | Active |
| Published | 2005 |
| Output Voltage | 10V |
| Terminal Pitch | 0.5mm |
| Base Part Number | LTC3835 |
Introduce
We can supply LTC3835IDHC-1#PBF , send us a request quote to request LTC3835IDHC-1#PBF pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LTC3835IDHC-1#PBF.The price and lead time for LTC3835IDHC-1#PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part LTC3835IDHC-1#PBF.We look forward to working with you to establish long-term relations of cooperation
