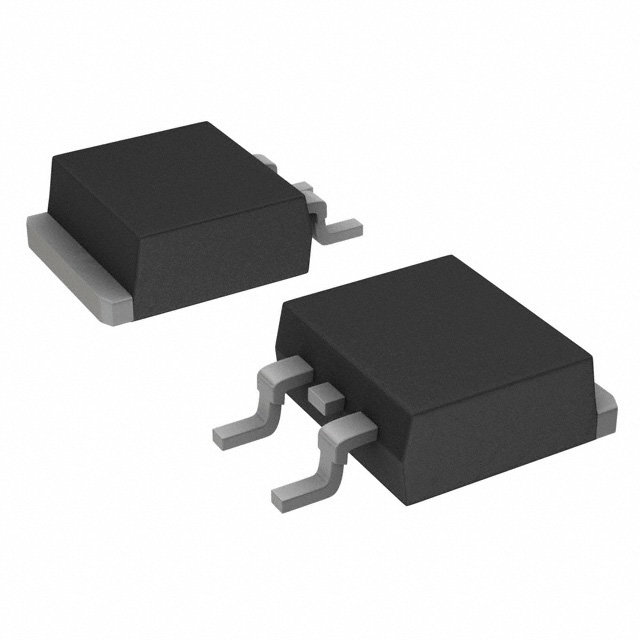

Images are for reference only.
See Product Specifications for product details.
Buy IRFR48ZPBF with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRFR48ZPBF with confidence from wisdommobility.com, 1 Year Warranty
IRFR48ZPBF
| Part No | IRFR48ZPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | MOSFET N-CH 55V 42A DPAK |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:10309 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.333 | $33 | |||
| 10+ | $0.327 | $164 | |||
| 100+ | $0.32 | $320 | |||
| 1000+ | $0.31 | $310 | |||
| 10000+ | $0.29 | $290 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 55V |
|---|---|
| Power Dissipation (Max): | 91W (Tc) |
| Package / Case: | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Mounting Type: | Surface Mount |
| Packaging: | Tube |
| Supplier Device Package: | D-PAK (TO-252AA) |
| Vgs(th) (Max) @ Id: | 4V @ 50µA |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | N-Channel 55V 42A (Tc) 91W (Tc) Surface Mount D-PAK (TO-252AA) |
| FET Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Email: | sale@wisdommobility.com |
| FET Type: | N-Channel |
| Series: | HEXFET® |
| Current - Continuous Drain (Id) @ 25°C: | 42A (Tc) |
| Other Names: | *IRFR48ZPBF SP001564992 |
| Input Capacitance (Ciss) (Max) @ Vds: | 1720pF @ 25V |
| Vgs (Max): | ±20V |
| Rds On (Max) @ Id, Vgs: | 11 mOhm @ 37A, 10V |
| Technology: | MOSFET (Metal Oxide) |
| Gate Charge (Qg) (Max) @ Vgs: | 60nC @ 10V |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
Introduce
We can supply IRFR48ZPBF , send us a request quote to request IRFR48ZPBF pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFR48ZPBF.The price and lead time for IRFR48ZPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part IRFR48ZPBF.We look forward to working with you to establish long-term relations of cooperation
