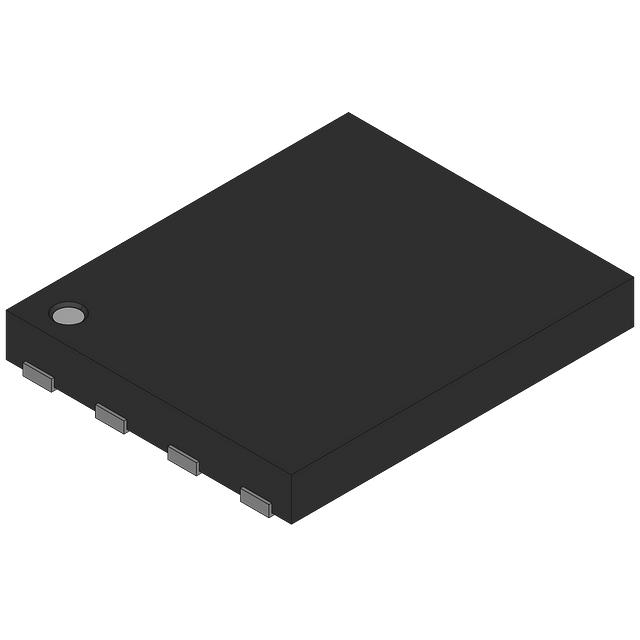

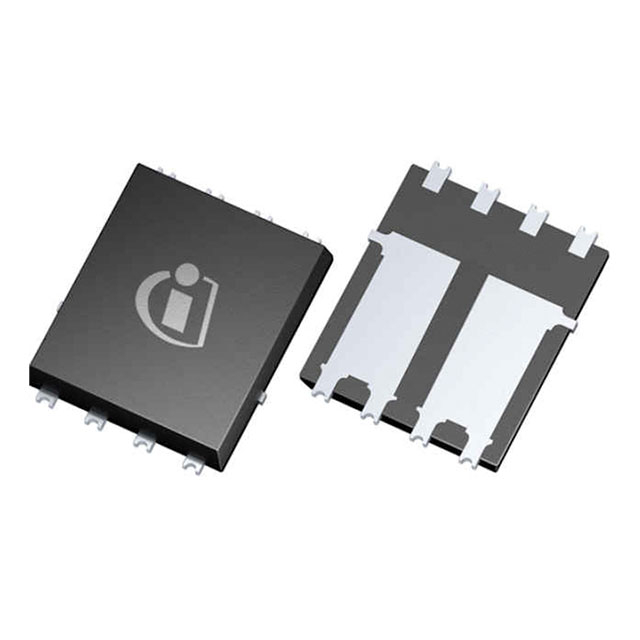

Images are for reference only.
See Product Specifications for product details.
Buy IPG20N06S3L-23 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy IPG20N06S3L-23 with confidence from wisdommobility.com, 1 Year Warranty
IPG20N06S3L-23
| Part No | IPG20N06S3L-23 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | MOSFET 2N-CH 55V 20A TDSON-8 |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:8896 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.417 | $42 | |||
| 10+ | $0.408 | $204 | |||
| 100+ | $0.4 | $400 | |||
| 1000+ | $0.38 | $380 | |||
| 10000+ | $0.37 | $370 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 55V |
|---|---|
| Package / Case: | 8-PowerVDFN |
| Mounting Type: | Surface Mount |
| Packaging: | Tape & Reel (TR) |
| Supplier Device Package: | PG-TDSON-8-4 |
| Vgs(th) (Max) @ Id: | 2.2V @ 20µA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | Mosfet Array 2 N-Channel (Dual) 55V 20A 45W Surface Mount PG-TDSON-8-4 |
| FET Feature: | Logic Level Gate |
| Power - Max: | 45W |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Email: | sale@wisdommobility.com |
| FET Type: | 2 N-Channel (Dual) |
| Series: | OptiMOS™ |
| Current - Continuous Drain (Id) @ 25°C: | 20A |
| Base Part Number: | *PG20N06 |
| Other Names: | SP000396304 |
| Input Capacitance (Ciss) (Max) @ Vds: | 2950pF @ 25V |
| Rds On (Max) @ Id, Vgs: | 23 mOhm @ 16A, 10V |
| Gate Charge (Qg) (Max) @ Vgs: | 42nC @ 10V |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
Introduce
We can supply IPG20N06S3L-23 , send us a request quote to request IPG20N06S3L-23 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPG20N06S3L-23.The price and lead time for IPG20N06S3L-23 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part IPG20N06S3L-23.We look forward to working with you to establish long-term relations of cooperation
