IPB60R299CPATMA1
| Part No | IPB60R299CPATMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | MOSFET N-CH 600V 11A TO-263 |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 600V |
|---|---|
| Power Dissipation (Max): | 96W (Tc) |

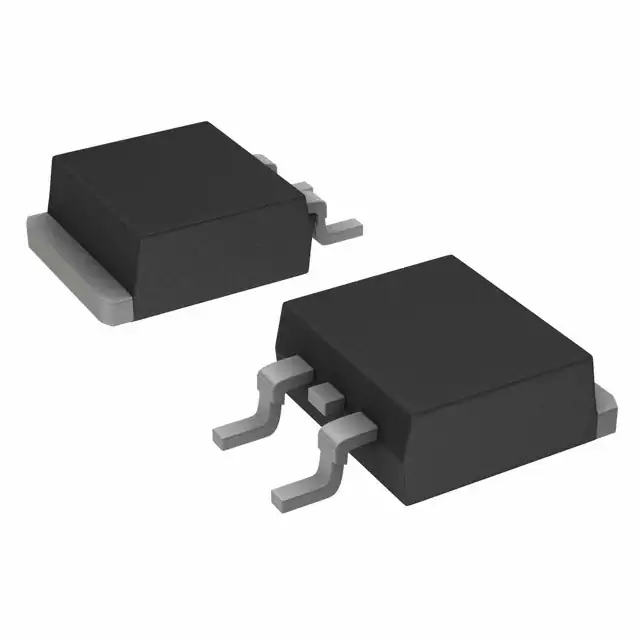

| Package / Case: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Mounting Type: | Surface Mount |
| Packaging: | Tape & Reel (TR) |
| Supplier Device Package: | PG-TO263-3-2 |
| Vgs(th) (Max) @ Id: | 3.5V @ 440µA |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | N-Channel 600V 11A (Tc) 96W (Tc) Surface Mount PG-TO263-3-2 |
| FET Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Email: | sale@wisdommobility.com |
| FET Type: | N-Channel |
| Series: | CoolMOS™ |
| Current - Continuous Drain (Id) @ 25°C: | 11A (Tc) |
| Other Names: | IPB60R299CP IPB60R299CP-ND IPB60R299CPATMA1-ND IPB60R299CPATMA1TR IPB60R299CPTR-ND SP000301161 |
| Input Capacitance (Ciss) (Max) @ Vds: | 1100pF @ 100V |
| Vgs (Max): | ±20V |
| Rds On (Max) @ Id, Vgs: | 299 mOhm @ 6.6A, 10V |
| Technology: | MOSFET (Metal Oxide) |
| Gate Charge (Qg) (Max) @ Vgs: | 29nC @ 10V |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
Introduce
We can supply IPB60R299CPATMA1 , send us a request quote to request IPB60R299CPATMA1 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPB60R299CPATMA1.The price and lead time for IPB60R299CPATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part IPB60R299CPATMA1.We look forward to working with you to establish long-term relations of cooperation
