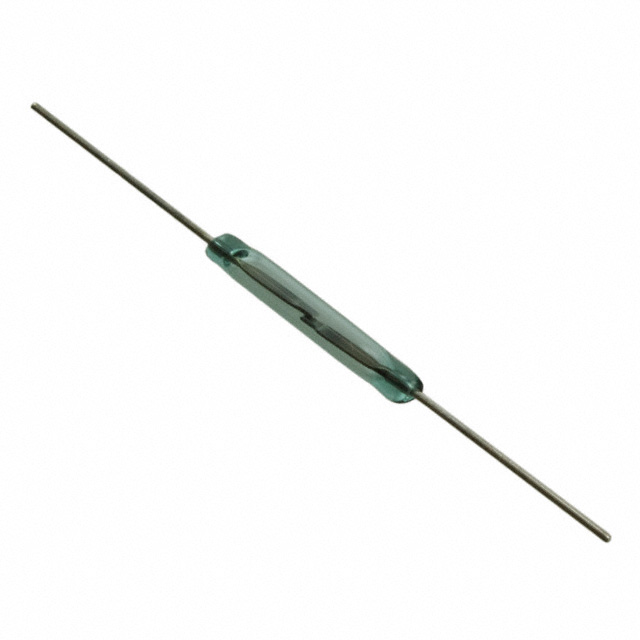

HA15-2-22-28
| Part No | HA15-2-22-28 |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | SWITCH REED SPST-NO 350MA 265V |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:3883 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $1.8648 | $186 | |||
| 10+ | $1.8275 | $914 | |||
| 100+ | $1.7716 | $1772 | |||
| 1000+ | $1.7156 | $1716 | |||
| 10000+ | $1.641 | $1641 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Power - Rated: | 10W |
|---|---|
| Release Range: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Termination Style: | Axial |
| Email: | sale@wisdommobility.com |
| Capacitance: | 0.2pF |
| Height Above Board: | - |
| Operating Temperature: | -20°C ~ 125°C |
| Circuit: | SPST-NO |
| Mounting Type: | Through Hole |
| Packaging: | Bulk |
| Current - Switching: | 350mA (AC), 500mA (DC) |
| Length - Overall: | 1.590" (40.39mm) |
| Operate Range: | 22 ~ 28AT |
| Current - Carry: | 1.5A (DC) |
| Detailed Description: | Glass Body Reed Switch SPST-NO 22 ~ 28AT Operate Range 10W 350mA (AC), 500mA (DC) 265V Through Hole |
| Release Time: | 0.2ms |
| Voltage - Switching AC: | 265V |
| Size - Body: | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) |
| Voltage - Switching DC: | 200V |
| Series: | HA15-2 |
| Type: | Glass Body |
| Other Names: | HA-15-2 22-28 HA1522228 HE559 |
| Operate Time: | 0.6ms |
