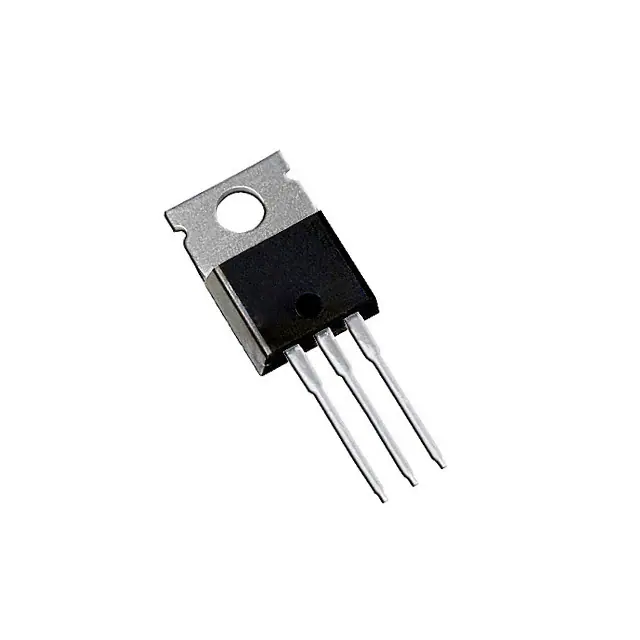

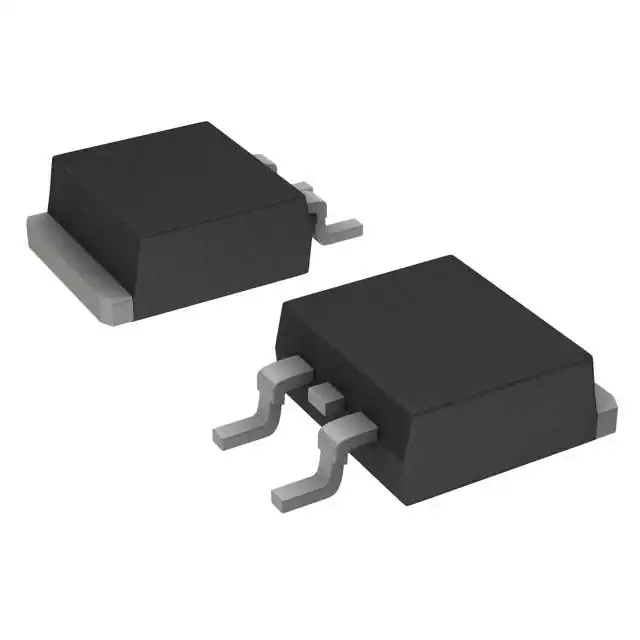

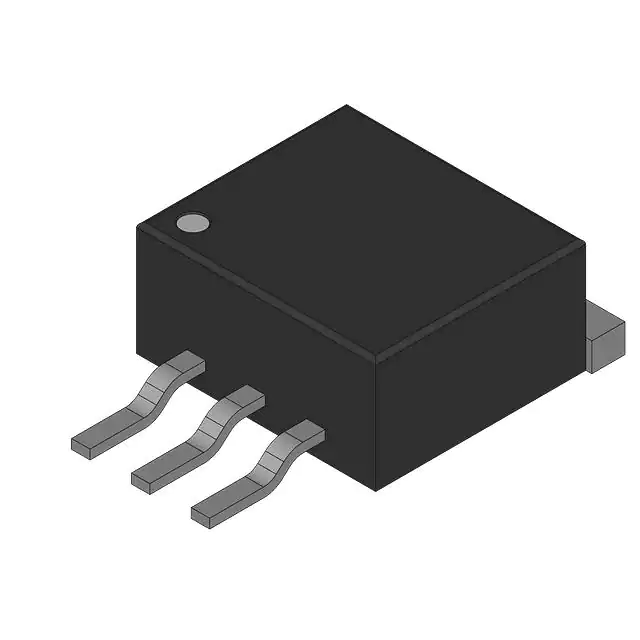

Images are for reference only.
See Product Specifications for product details.
Buy AUIPS1042GTR with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy AUIPS1042GTR with confidence from wisdommobility.com, 1 Year Warranty
AUIPS1042GTR
| Part No | AUIPS1042GTR |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | AUIPS1042 Series 39 V 4.5A Dual Channel Low Side Intelligent Power Switch SOIC-8 |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:10155 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.781 | $78 | |||
| 10+ | $0.7654 | $383 | |||
| 100+ | $0.742 | $742 | |||
| 1000+ | $0.7185 | $719 | |||
| 10000+ | $0.6873 | $687 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Min Operating Temperature | -40 °C |
|---|---|
| Min Supply Voltage | 6 V |
| Mount | Surface Mount |
| Max Supply Voltage | 28 V |
| Output Configuration | Low Side |
| Fall Time | 10 µs |
| RoHS | Compliant |
| Radiation Hardening | No |
| Drain to Source Voltage (Vdss) | 36 V |
| Drain to Source Resistance | 80 mΩ |
| Number of Channels | 2 |
| Lifecycle Status | Obsolete (Last Updated: 2 years ago) |
| Voltage | 5.5 V |
| Number of Pins | 8 |
| Height | 1.5 mm |
| Width | 4 mm |
| Lead Free | Lead Free |
| Max Power Dissipation | 1.25 W |
| REACH SVHC | No SVHC |
| Output Current | 1.5 A |
| Current Rating | 4.5 A |
| Number of Drivers | 2 |
| Turn-On Delay Time | 15 µs |
| Number of Outputs | 2 |
| Resistance | 80 mΩ |
| Max Operating Temperature | 150 °C |
| Power Dissipation | 1.25 W |
| Rise Time | 7 µs |
| Fault Protection | Over Temperature |
| Nominal Input Voltage | 5.5 V |
| Length | 5 mm |
| Turn-Off Delay Time | 150 µs |
| Packaging | Tape & Reel |
| Clamping Voltage | 39 V |
| Package Quantity | 2500 |
| Current | 1.5 A |
| Interface | On/Off |
| Max Output Current | 1.5 A |
| Case/Package | SOIC |
