76RSB05
Part No | 76RSB05 |
---|---|
Manufacturer | Grayhill, Inc. |
Description | SWITCH ROCKER DIP SPST 150MA 30V |
Lead Free Status / RoHS Status | Contains lead /RoHS non-compliant |
Specifications
Data sheet
Body Material: | Thermoplastic |
---|---|
Mechanical Life: | 2,000 Cycles |
Length: | 0.580" (14.73mm) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Electrical Life: | 2,000 Cycles |
Termination Style: | PC Pin |
Email: | sale@wisdommobility.com |
Actuator Level: | Flush, Recessed |
Pitch: | 0.100" (2.54mm), Full |
Height Above Board: | 0.292" (7.41mm) |
Features: | - |
Operating Temperature: | -40°C ~ 85°C |
Contact Material: | Copper Alloy |
Current Rating: | 150mA |
Circuit: | SPST |
Voltage Rating: | 30VDC |
Mounting Type: | Through Hole |
Packaging: | Tube |
Detailed Description: | Dip Switch SPST 5 Position Through Hole Rocker Actuator 150mA 30VDC |
Actuator Type: | Rocker |
Series: | 76 |
Other Names: | GH1275 |
Washable: | No |
Number of Positions: | 5 |
Contact Finish: | Gold |
Introduce
We can supply 76RSB05 , send us a request quote to request 76RSB05 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 76RSB05.The price and lead time for 76RSB05 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part 76RSB05.We look forward to working with you to establish long-term relations of cooperation
Related parts for 76RSB05
Image | Part Number | Manufacturers | Description | View |
---|---|---|---|---|
![]() |

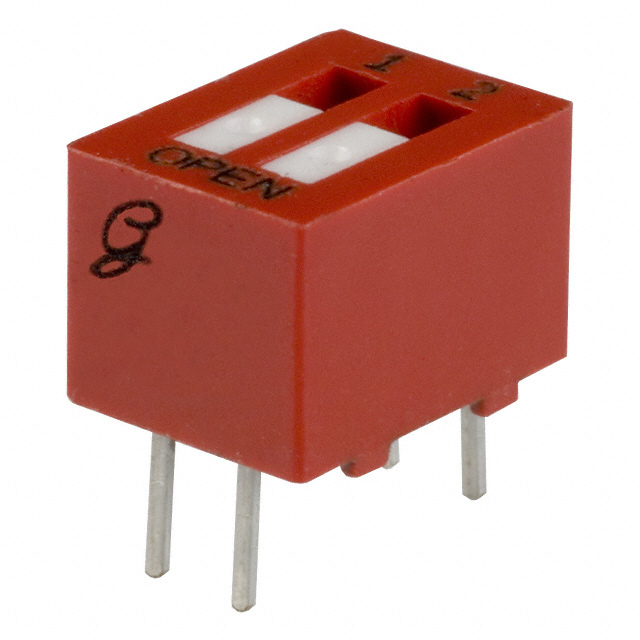

76RSB02 | Grayhill, Inc. | SWITCH ROCKER DIP SPST 150MA 30V | RFQ >> |
![]() |
